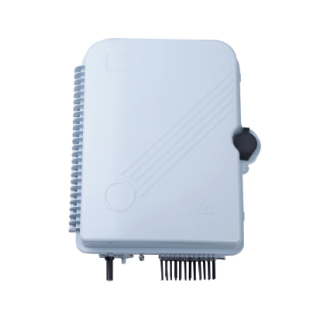

Fiber Optic Termination Box

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, PFMDU24-24F-SCA-SXXX Precision Patch and Splice MDU24 NID with 24SCA adapters storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

HOW TO BUY

Description

Protects and manages cable

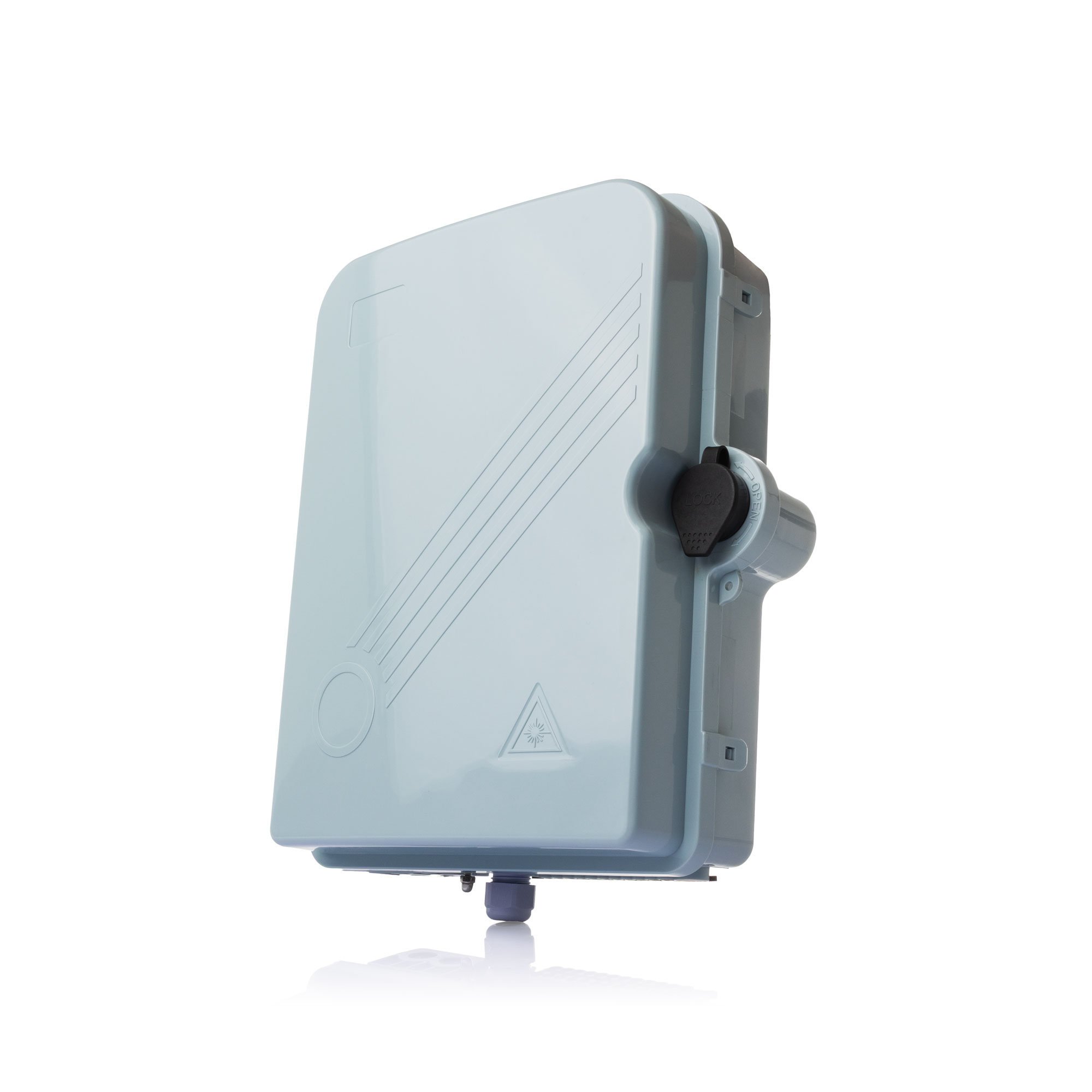

Secured with anti-theft locking mechanism
Standard size, light weight
High quality PC+ABS material
Protection from dust, and moisture proofing, IP65

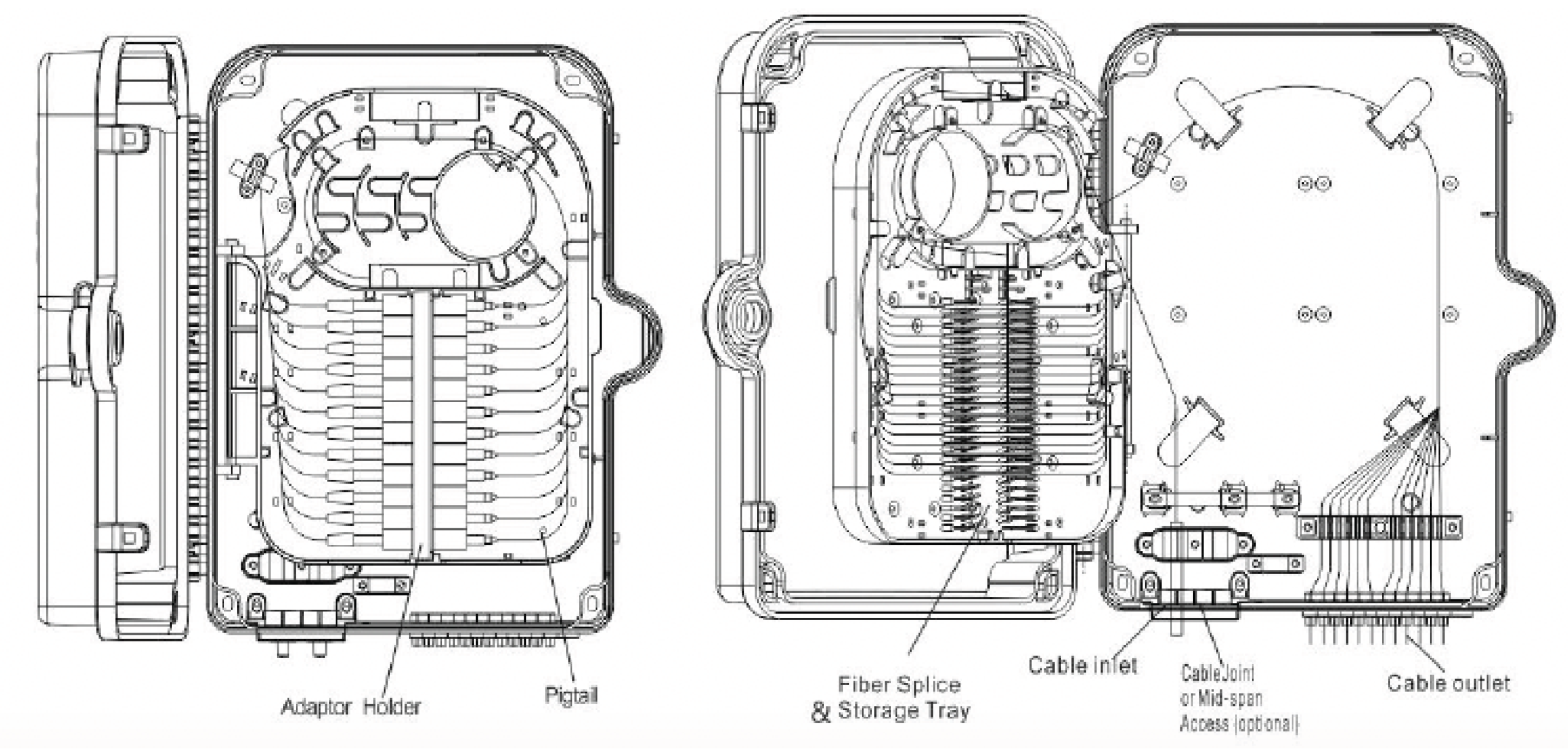

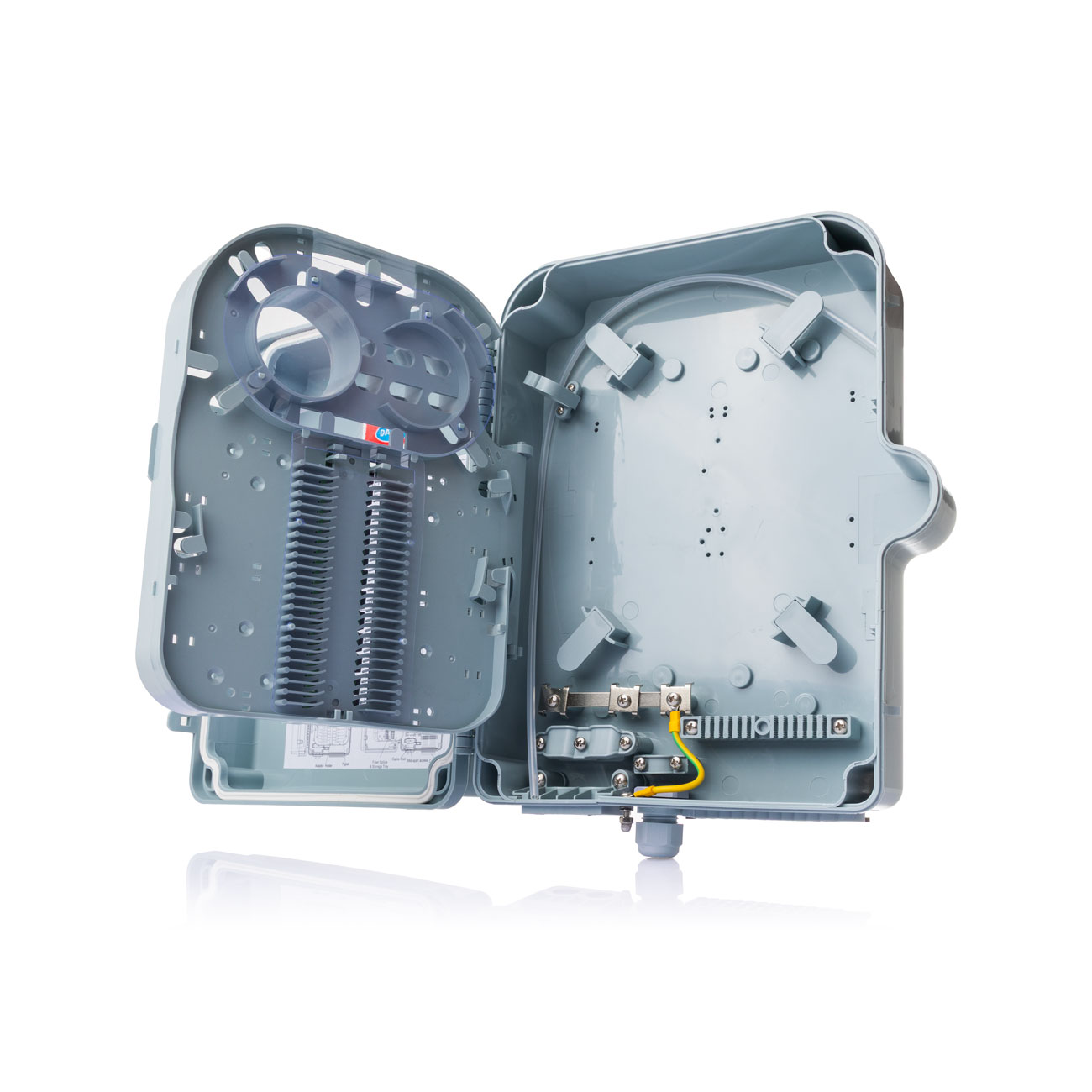

Clamping for feeder cable and drop cable, fiber splicing, storage, distribution

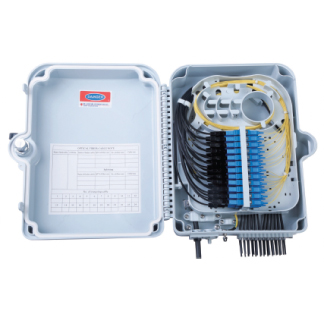

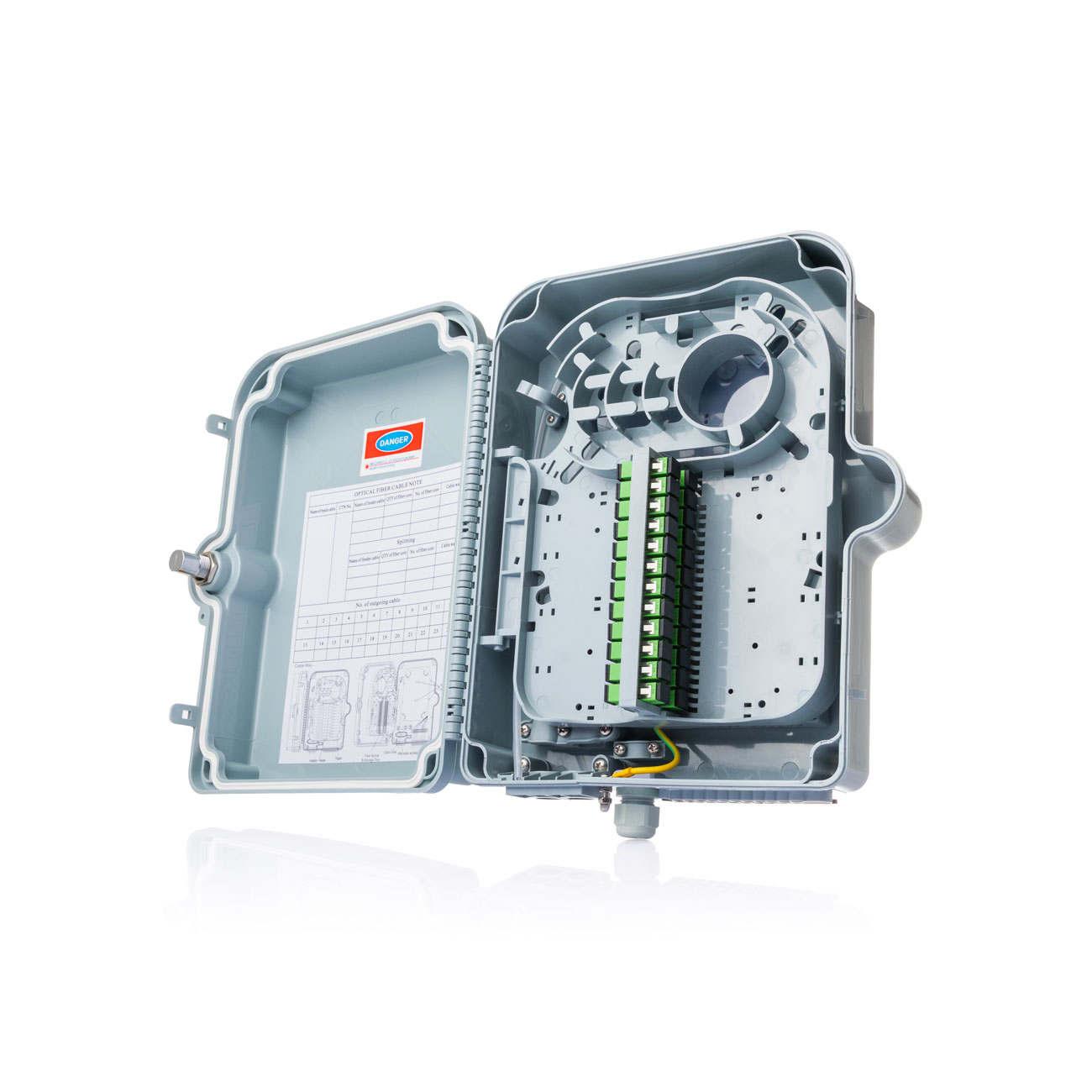

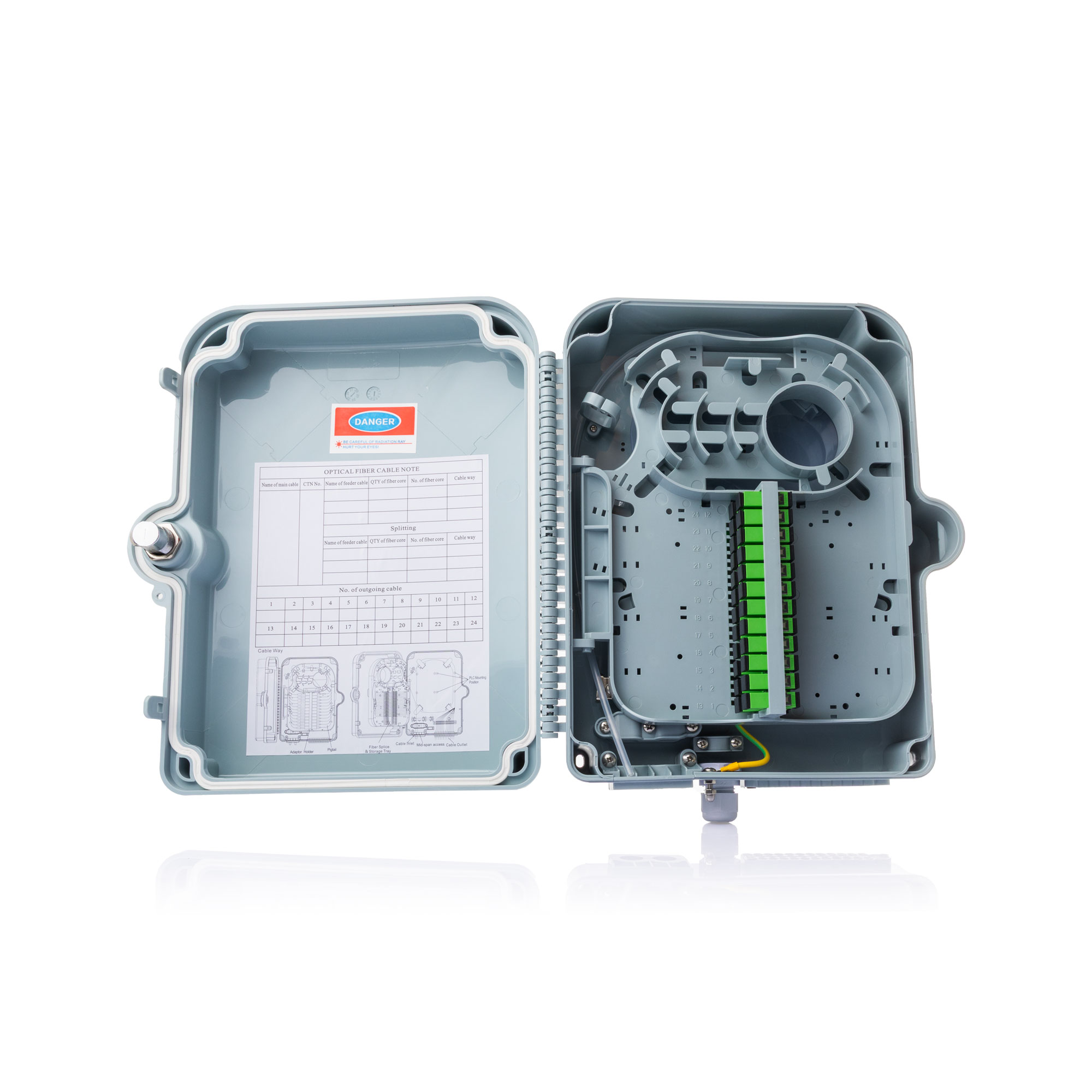

Up to 24 SC or 48 LC adaptors
Can be pre-loaded with splitters or pigtails
Wall and pole mountable (accessories optional)
Suitable for both outdoor and indoor use

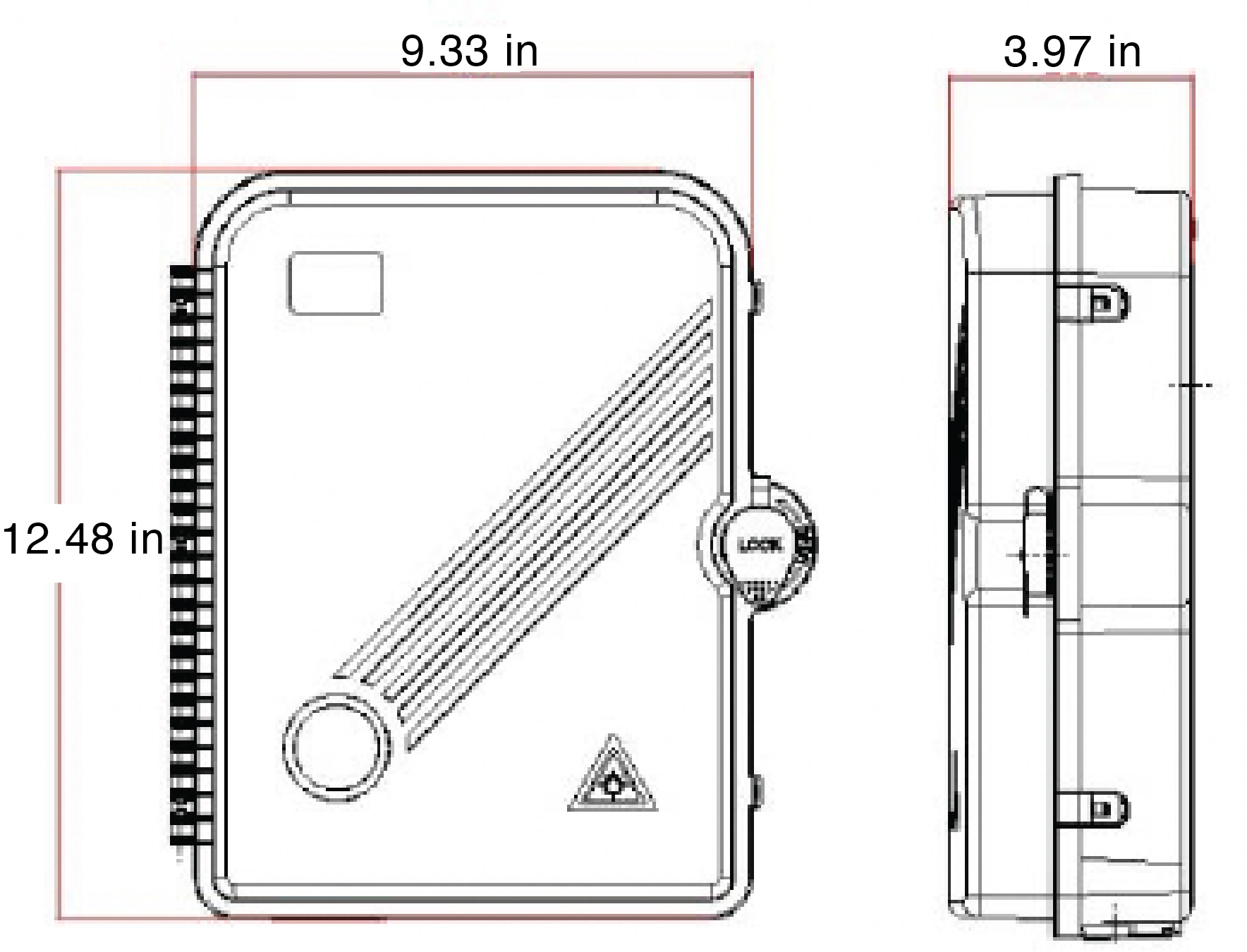

Dimensions: 12.48in x 9.33in x 3.97in

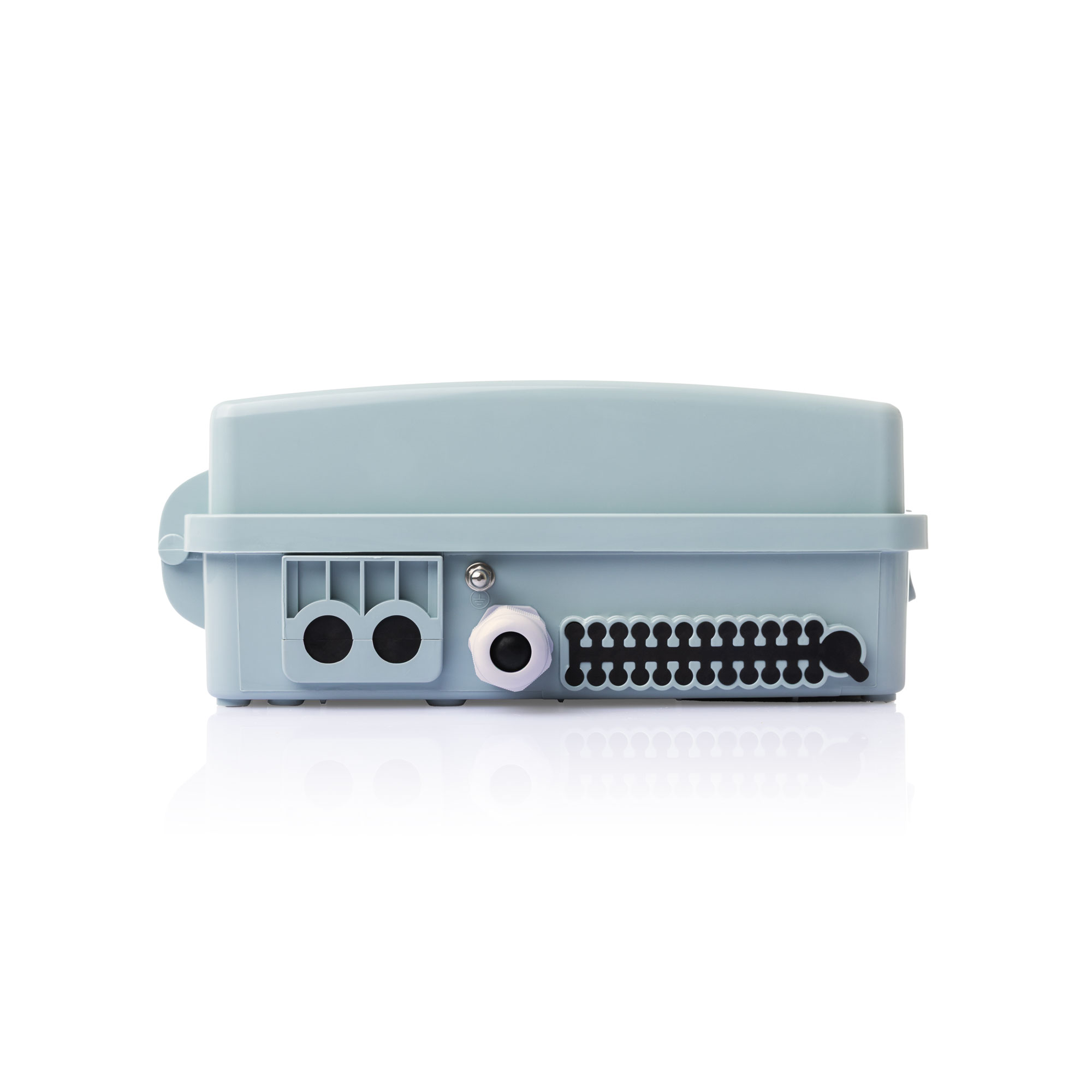

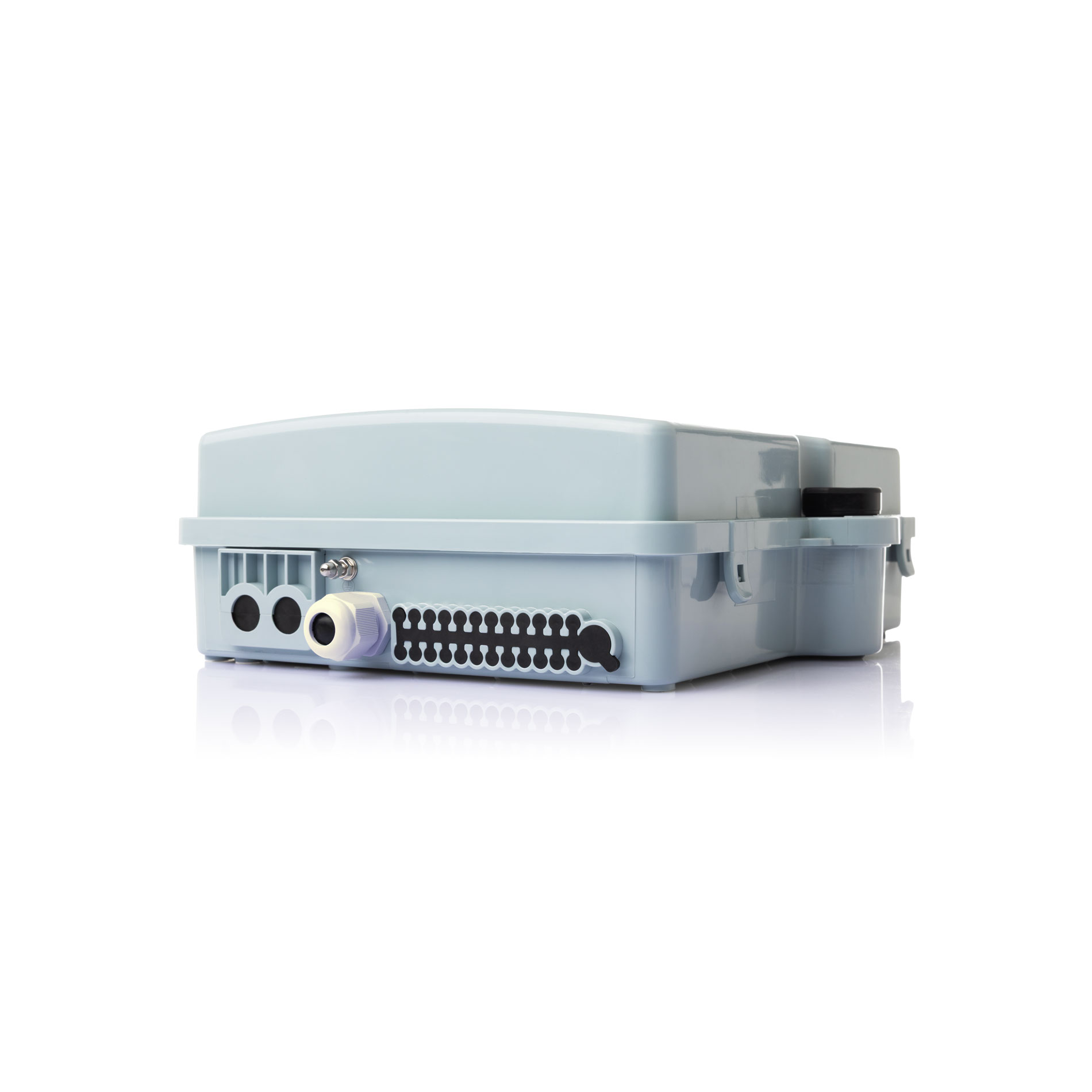

Bulk Exit for I/O ruggedized premise fiber or up to 24 single exit positions for 2mm-3mm fibers

Ordering Guide

PFMDU24-24F-SCA-SXXX
Precision Patch and Splice MDU24 NID with 24SCA adapters

Specifications

APPLICATION:

Telecommunication subscriber loop
Fiber to the home(FTTH)
LAN/WAN

TECHNICAL DATA:

Work Temperature: -40 ⁰C ~+85 ⁰C
Relative Humidity: ≤ 85% (+30 ⁰C)
Atmospheric Pressure: 70Kpa~106Kpa
Insert Loss: ≤ 0.2dB
UPC Return Loss: ≥ 50dB
APC Return Loss: ≥ 60dB
Insert and Pull Out Life: ≥ 1000 times
Insulation: The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
Withstand Voltage: Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)

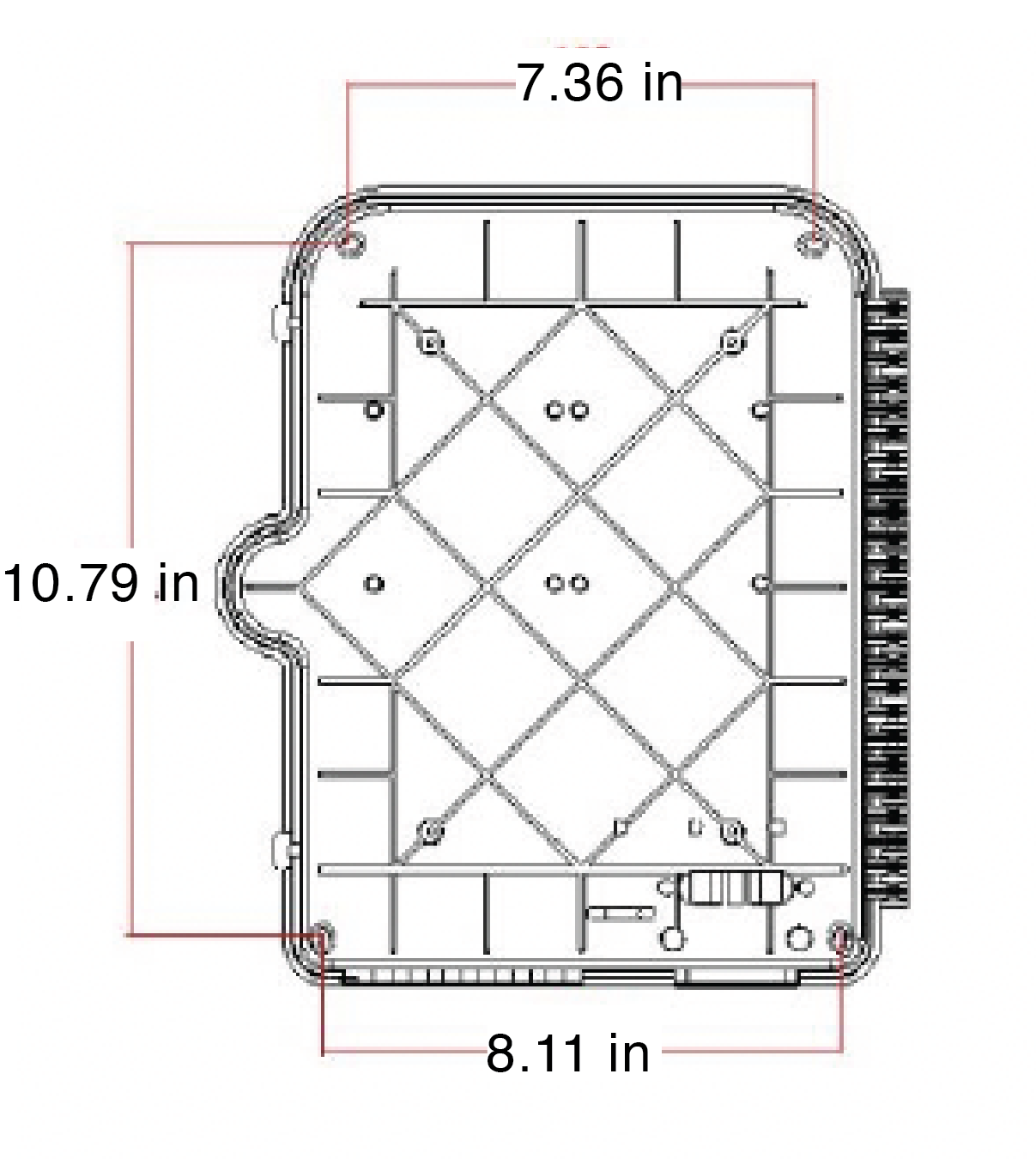

DIMENSIONS:
12.48in x 9.33in x 3.97in
