Flex MXU NID

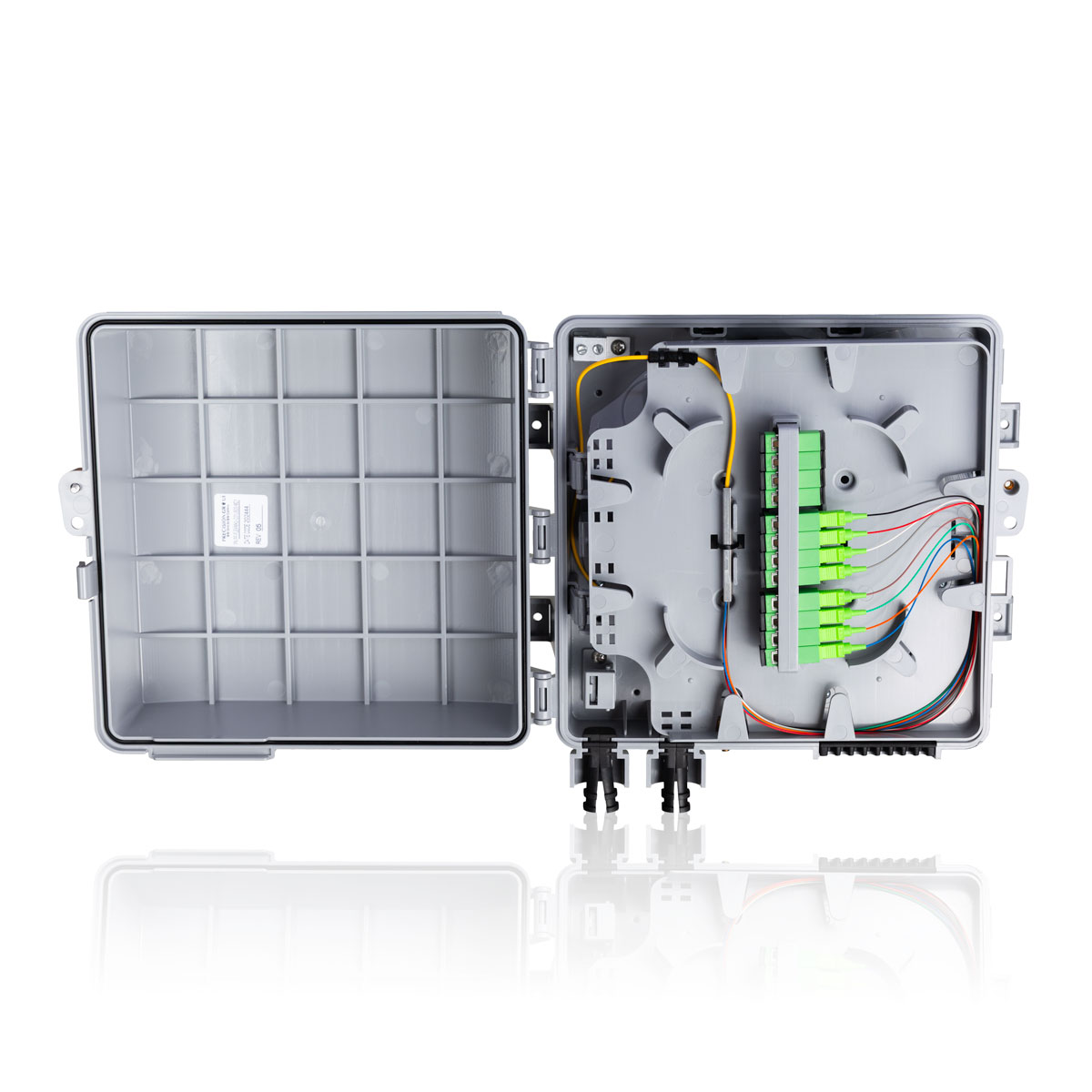

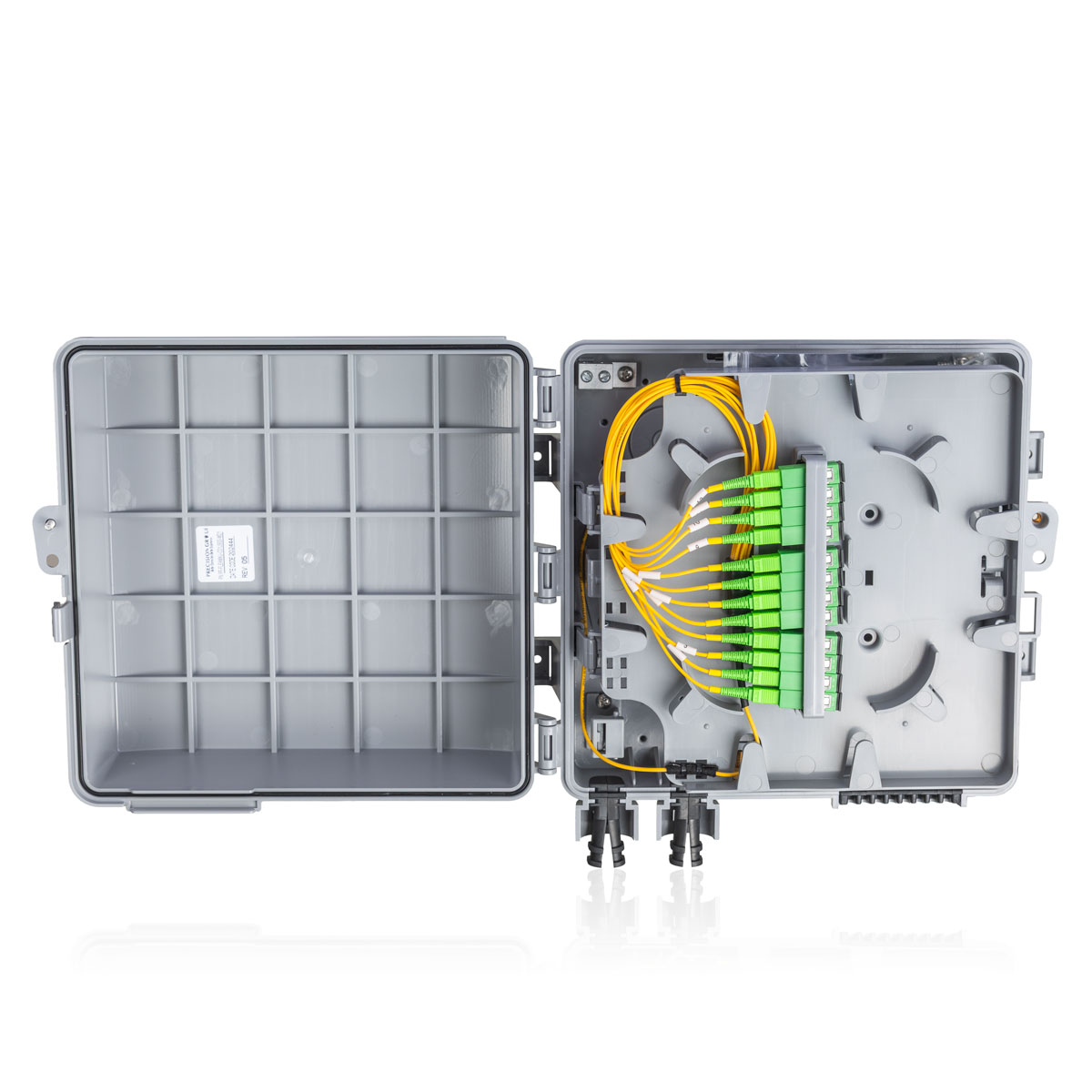

The Precision Flex MXU terminals offer a flexible and cost-effective solution for fiber network deployments. Patch and Splice Terminals are ideal for use with splice-ready fiber cable feeding an IDF closet or small multi-dwelling units (MDUs). Their compact footprint and intuitive cable routing make them the right choice for network deployments where wall space is critical. The bulkhead enclosure contains 8 or 12 SC adapters, a loose tube splice tray for up to 12 fusion splices.

Compare Our NIDs
Compare Our NIDs Download
Compare Our Grommets

Description

  • Holds Up To 12 SC Bulkhead Adapters
  • Precision Flex Clips Offer 3 Channel Separation Of Strength Member, Buffer Tube And I/O Fiber
  • Store Over 100’ Of 3.0mm I/O Jumper

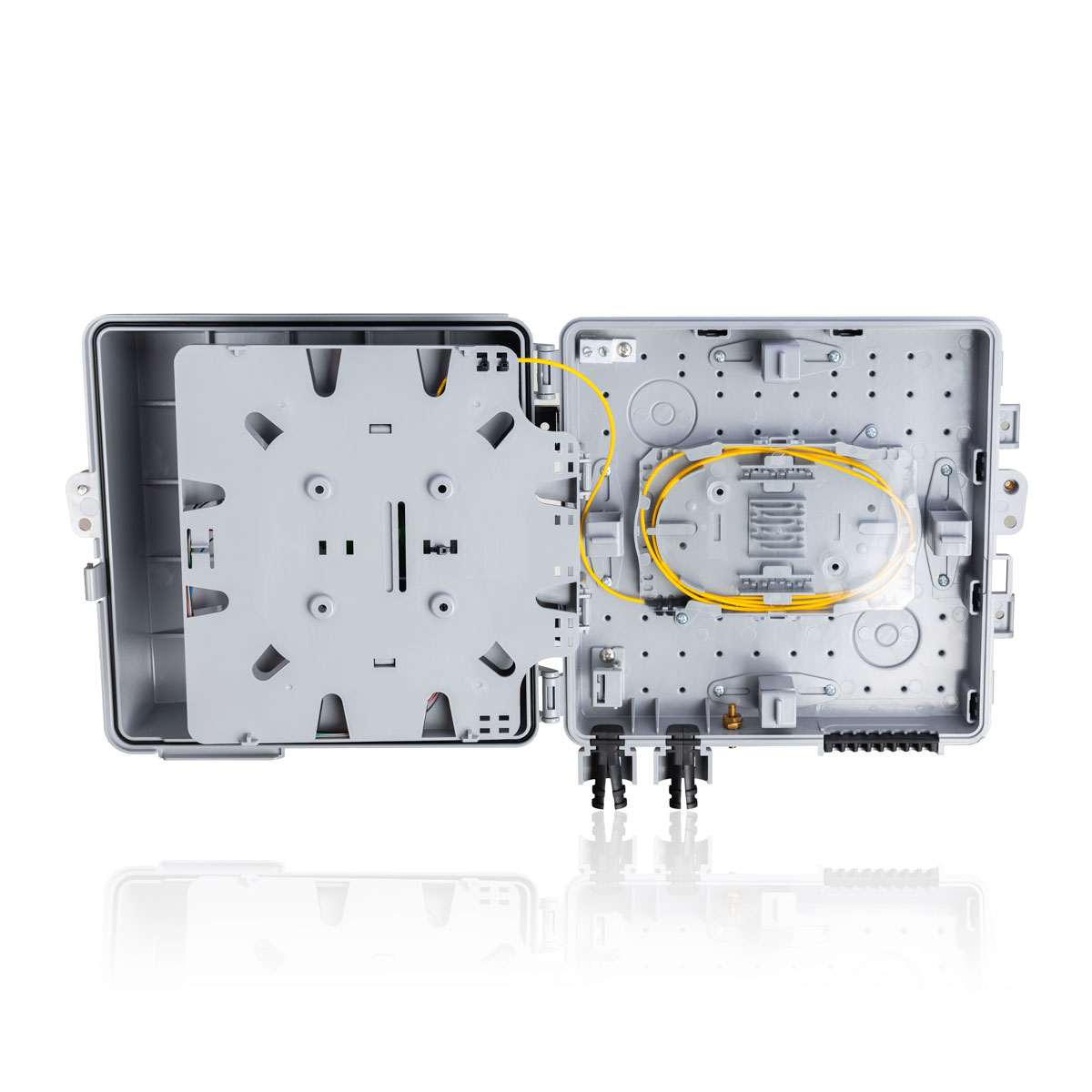

  • Fixed Splice Tray Holds Up To 16 Splices And Optional PLC Splitter
  • Optional Laser Engraved Logo
  • Precision External Location Lug
  • Optional Flex-Lock Multiport Fiber And Microduct Grommets
  • Optional Riser Conduit Grommet
  • Multifunctional Ground And Strength Member Securement Lug

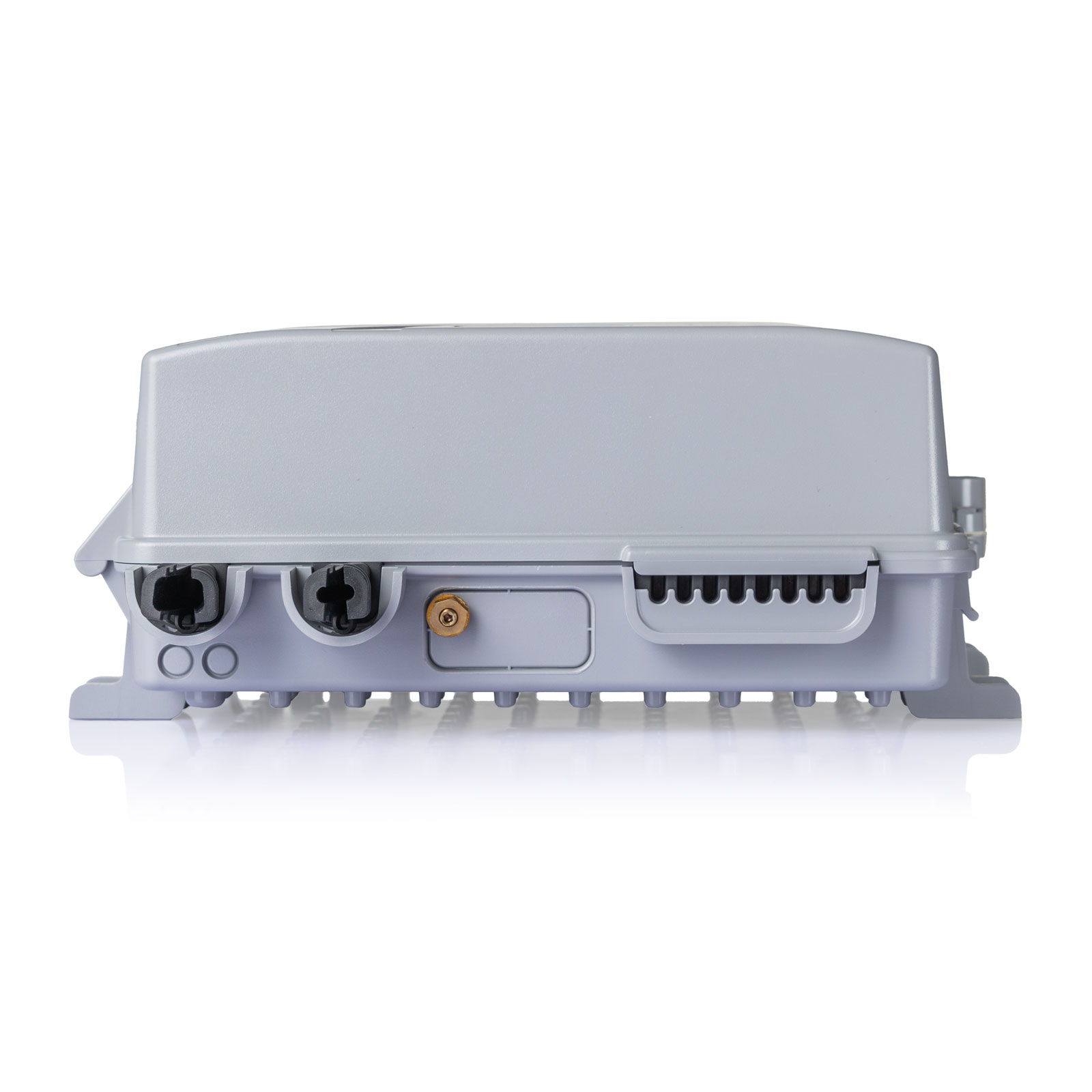

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

Specifications

Dimensions: 10.3 H x 10.8” W x 4.4” D

Compare Our NIDs

Compare Our NIDs
Compare Our NIDs Download

Compare Our Grommets

Compare Our Grommets

Ordering Guide

PF-FLEXMXU-C01JS00-MD1
Precision FlexMXU, Patch and Splice, 12 SCA Connectors, 12 Primary Splice Positions, Flat Lay-in Grommet Left, Round Lay-in Grommet Center, 8 Slot Grommet Right.

PF-FLEXMXU-C01JS132-033
Precision Fiber patch and splice MDU NID. 12 SCAPC, qty 1- 12 fiber fanout, flat split grommet on the left port, round split grommet center port, 8 vertical slot drop port grommet and conduit grommet kit loose in the bag.

PF-FLEXMXU-C01JS131-036
Precision Fiber patch and splice MDU NID, 12 SCAPC, qty 1- 12 fiber fanout, flat split grommet on the left port, round split grommet center port, and 8 vertical slot drop port grommet.

Downloads

PF-FLEXMXU Product sheet PDF
