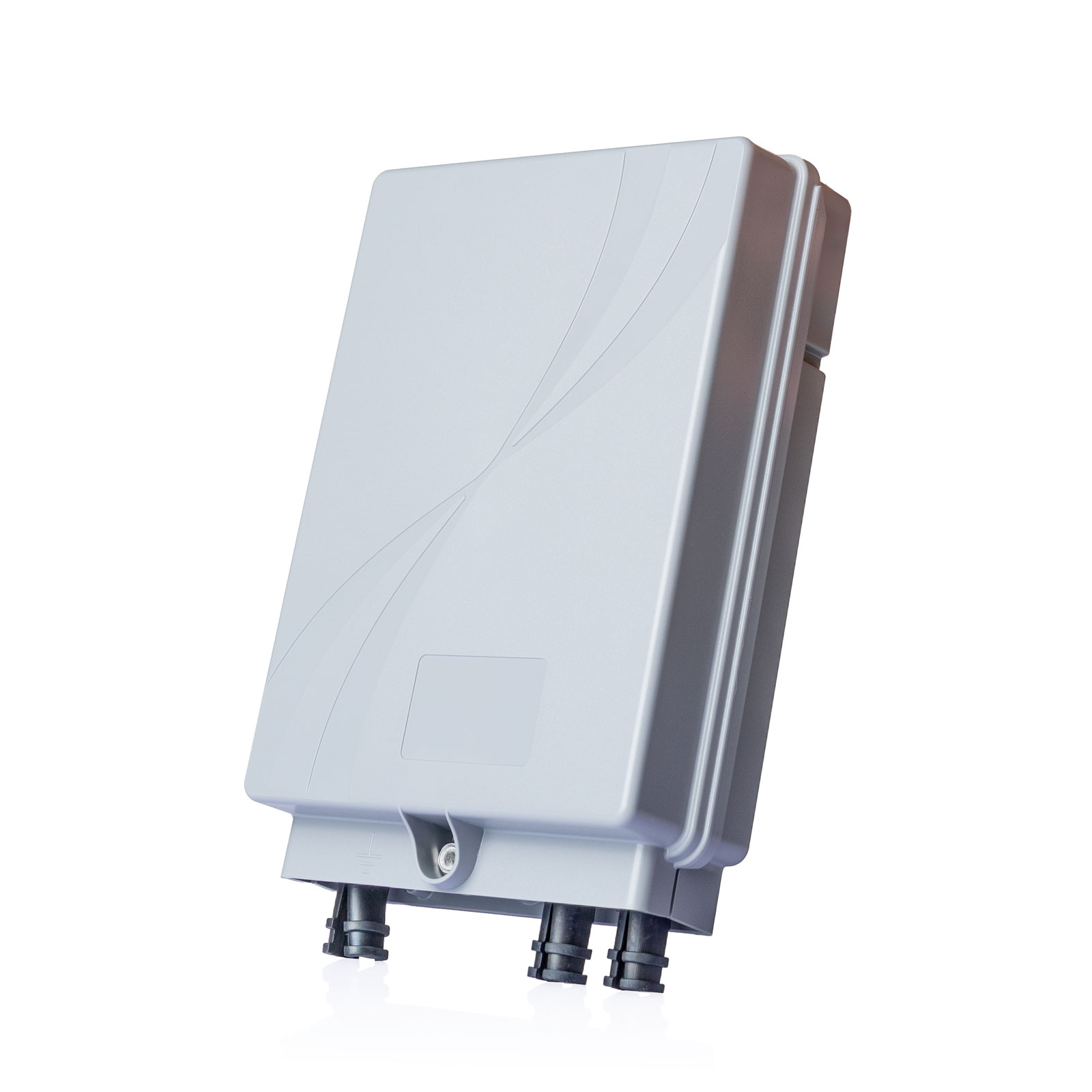

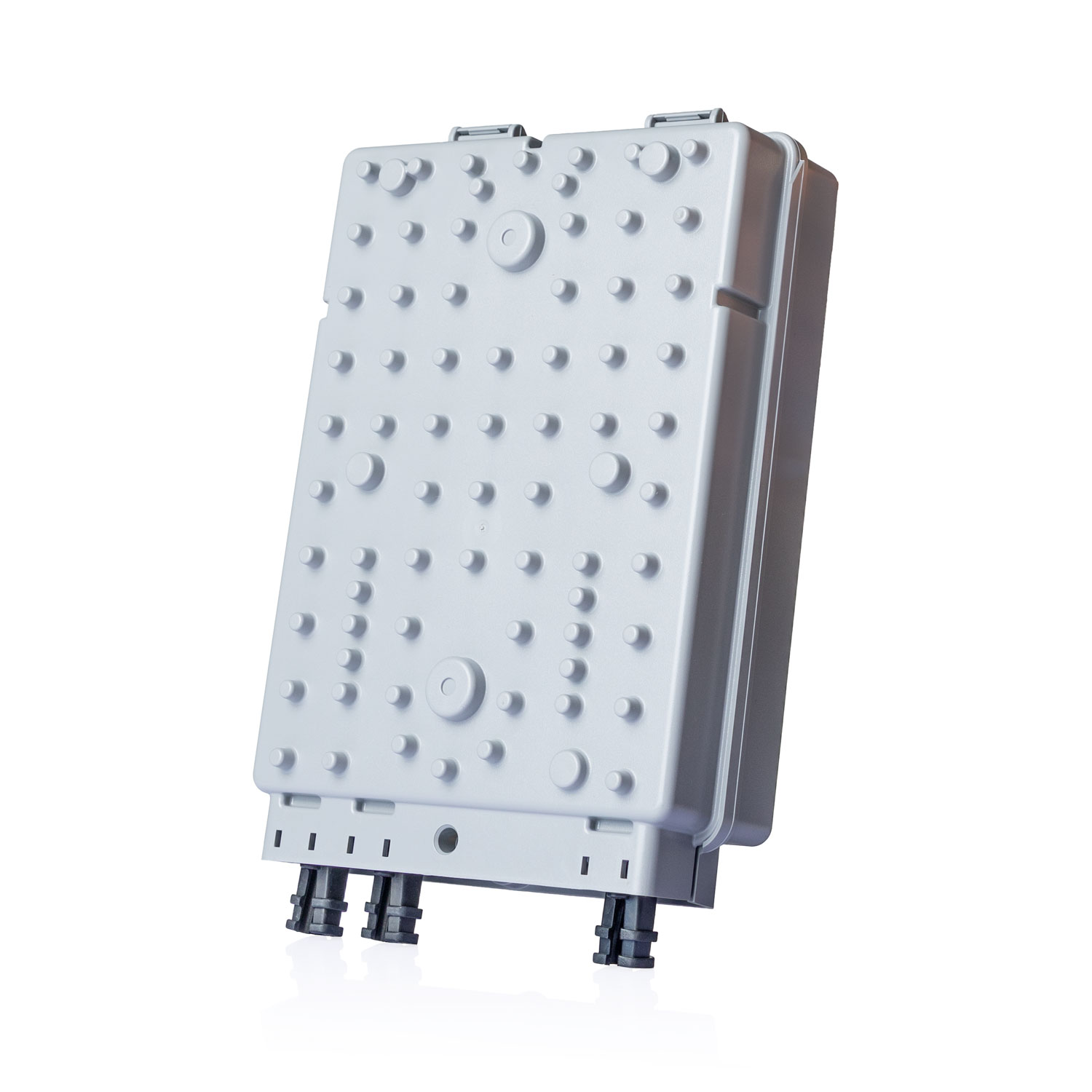

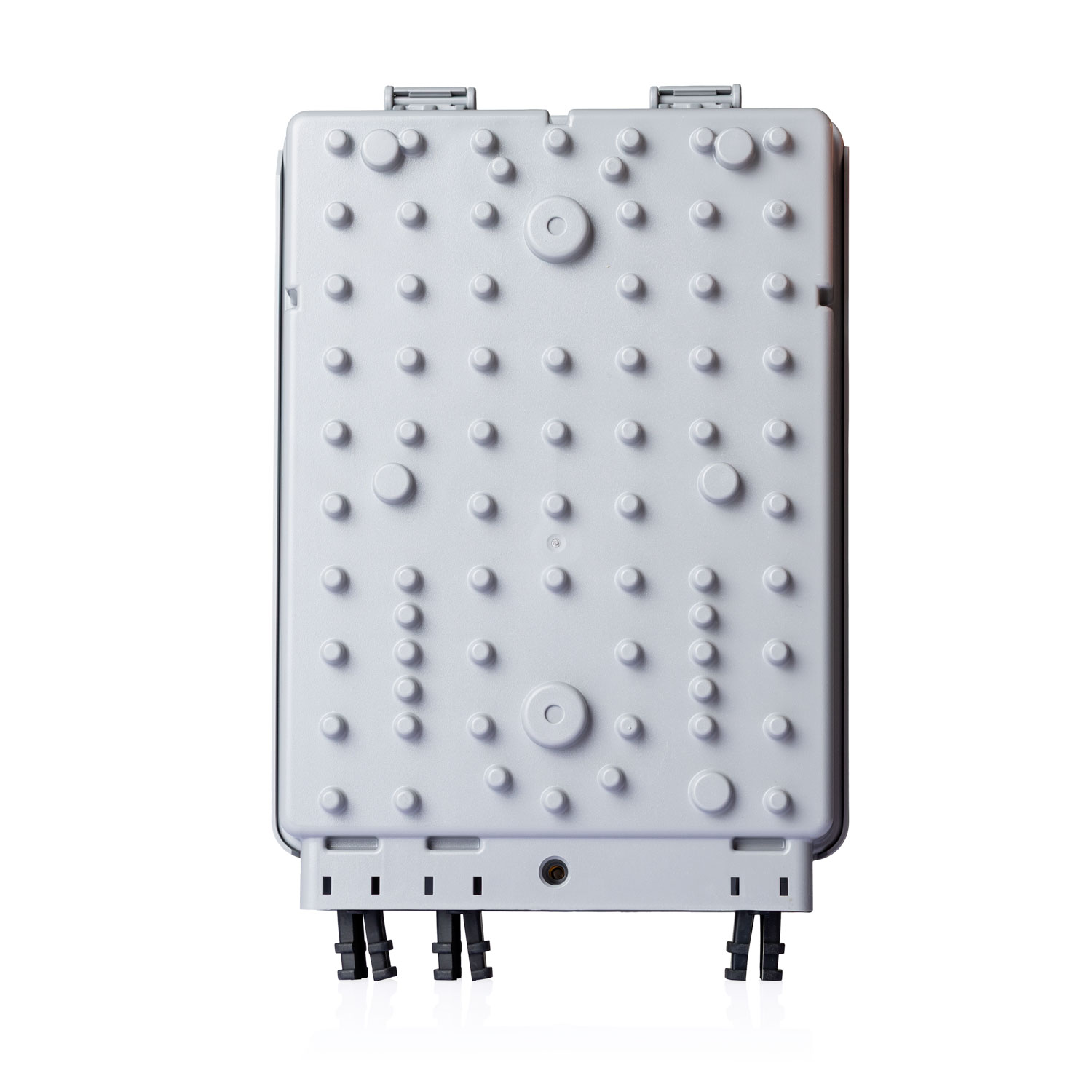

Midsized Flex NID (M-FLEX)

The perfect balance between function and design, the M-FLEX addresses all installer needs and profile requirements.

Designed by installers for installers, the M-FLEX NID’s sleek design couples function and size to offer the total Premise Solution. It’s universal design provides customized options to terminate your FTTX drop at the customer premise.

Whether installing round drop, flat drop or I/O fiber, the M-FLEX NID’s unique set of flex-lock split and conduit grommets offer total security and sealant from the outside world. External Locate Lug, strength member securement, dual channel separation for buffer tube and I/O fiber, store over 50 feet of 3.0mm I/O, patch and splice up to 4 fibers, and all in a compact solution…the M-FLEX has you covered! See the “BABA / BEAD” tab for U.S.–made part numbers.

Compare Our NIDs
Compare Our NIDs Download
Compare Our Grommets

Description

  • Pole Or Wall Mount
  • Field Selectable Bulkhead Positions

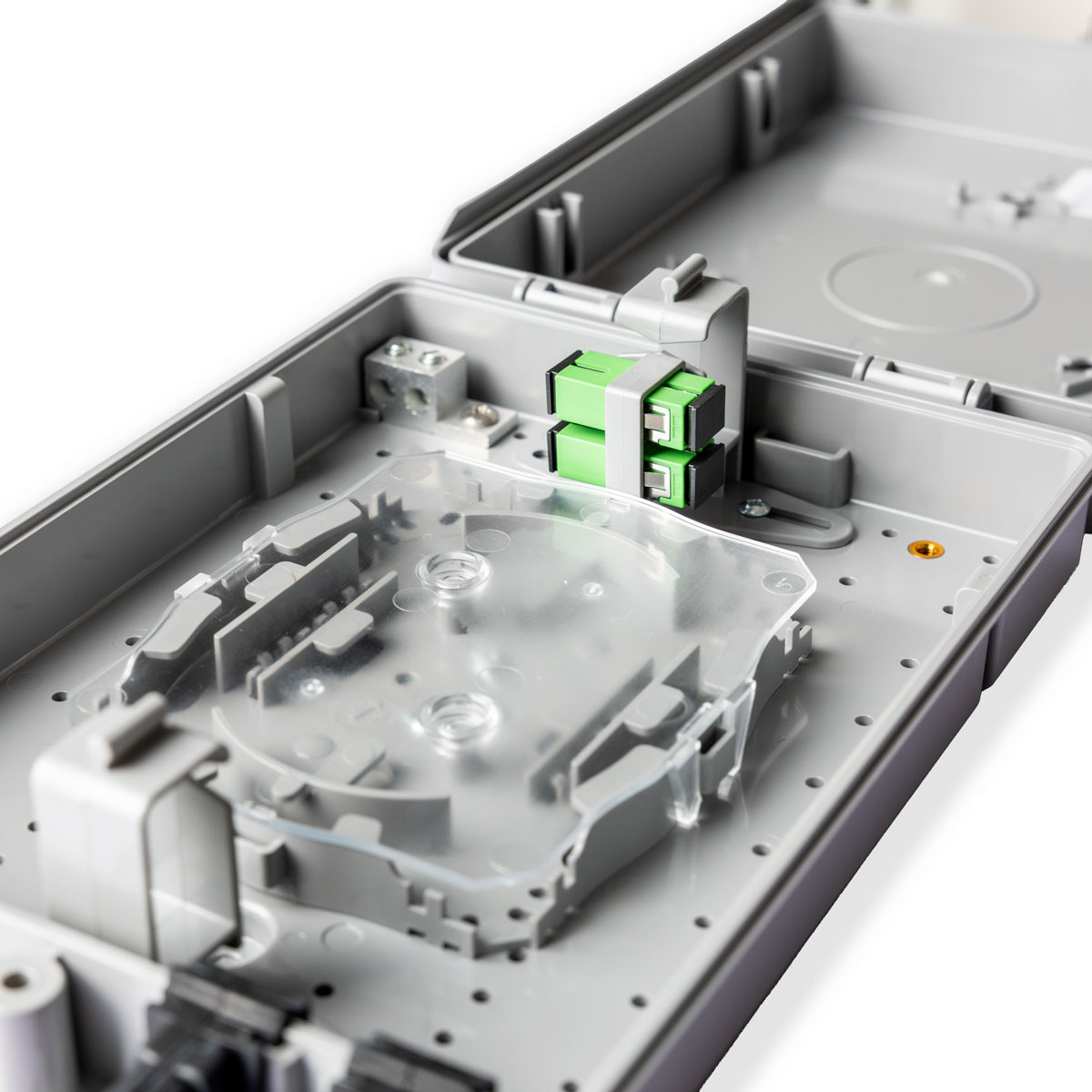

  • Holds Up To 4 SC Or 8 LC Bulkhead Adapters
  • Precision Flex Clips Offer 3 Channel Separation Of Strength Member, Buffer Tube And I/O Fiber
  • Store Over 50 Feet Of 3.0mm I/O Fiber
  • Optional Laser Engraved Logo
  • Precision External Location Lug
  • Optional Flex-Lock Multiport Fiber And Microduct Grommets
  • Optional Riser Conduit Grommet
  • Multifunctional Ground And Strength Member Securement Lug

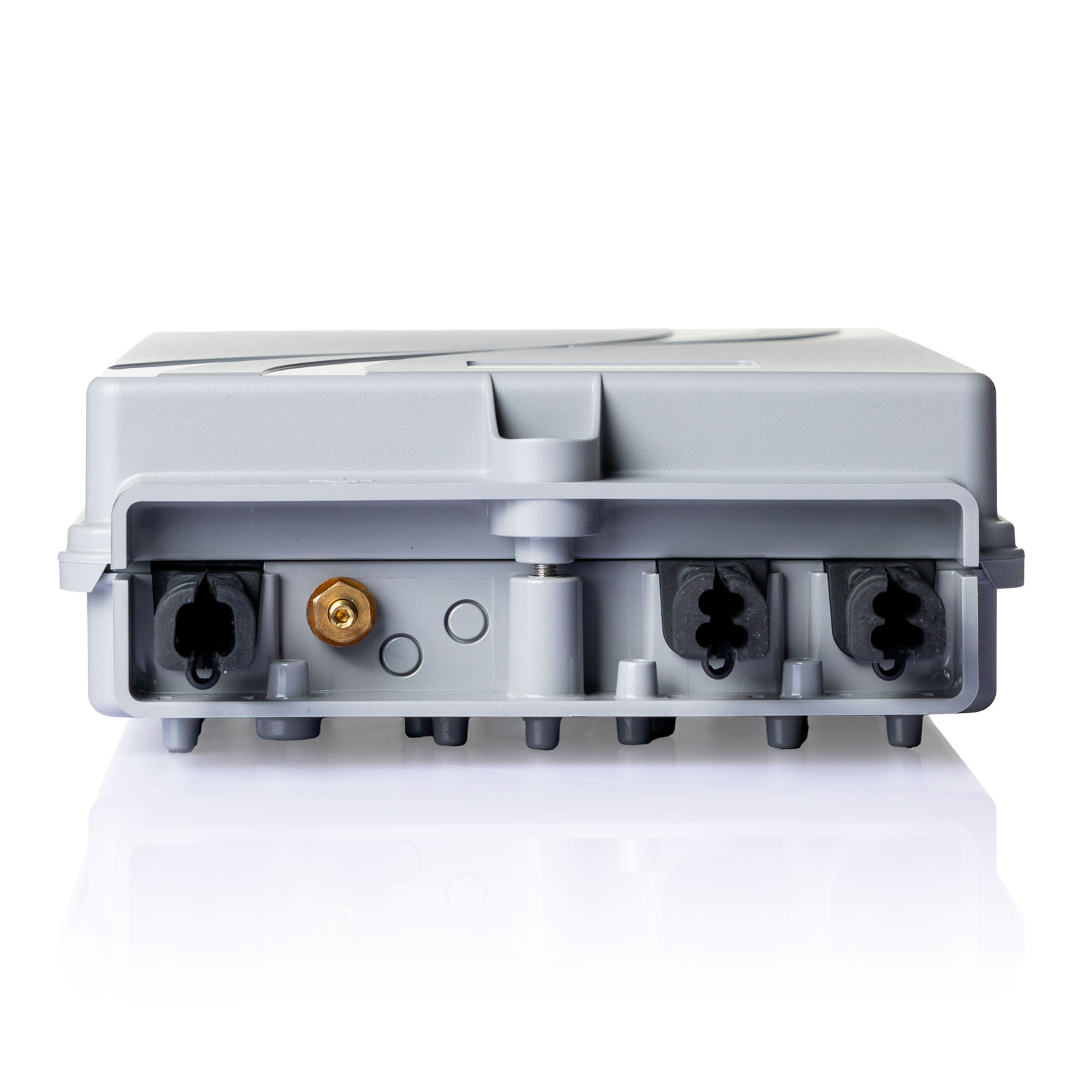

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

BABA / BEAD (U.S.–Made Versions)

Select U.S.–made configurations of this product meet BABA and BEAD compliance requirements.

Compliance is determined at the part-number level.

The part numbers listed below represent the U.S.–made, BABA/BEAD compliant versions of this product.

For project-specific guidance or alternate configurations, please contact your Precision Group representative.

PF-MFLEXNID-1000-US
MFLEX-NID, Flat Grommet Left, Round Split Grommet Center and Right, 2 SCAPC. Made in the U.S.A.

Ordering Guide

PF-MFLEXNID-1000
MFLEX-NID, Flat Grommet Left, Round Split Grommet Center and Right, 2 SCAPC.

PF-MFLEXNID-1002
Precision Fiber Midsize FlexNid SFU NID, 2 SC/APC Adapters, Flatdrop Split Grommet Left, I/O Round Split Grommet Center and Right, Qty – 2 900 Micron Pigtails

PF-MFLEX-NIDC01CS00-027
Precision Fiber Midsize FlexNid SFU NID, 2 SC/APC Adapters, Flatdrop Split Grommet Left, I/O Round Split Grommet Center and Right, No Pigtail, Conduit Grommet Loose in Package

Compare Our NIDs

Compare Our NIDs
Compare Our NIDs Download

Compare Our Grommets

Compare Our Grommets

Specifications

Dimensions: 9″Hx6.15”Wx2.25”D

Downloads

M-FLEXNID Product sheet PDF
