The MFLEX-DB-1000 is our MIDsized FlexNID optimized for maximum cable management and storage capability for standard I/O jumpers. See the “BABA / BEAD” tab for U.S.–made part numbers.
Compare Our NIDs
Compare Our NIDs Download
Compare Our Grommets

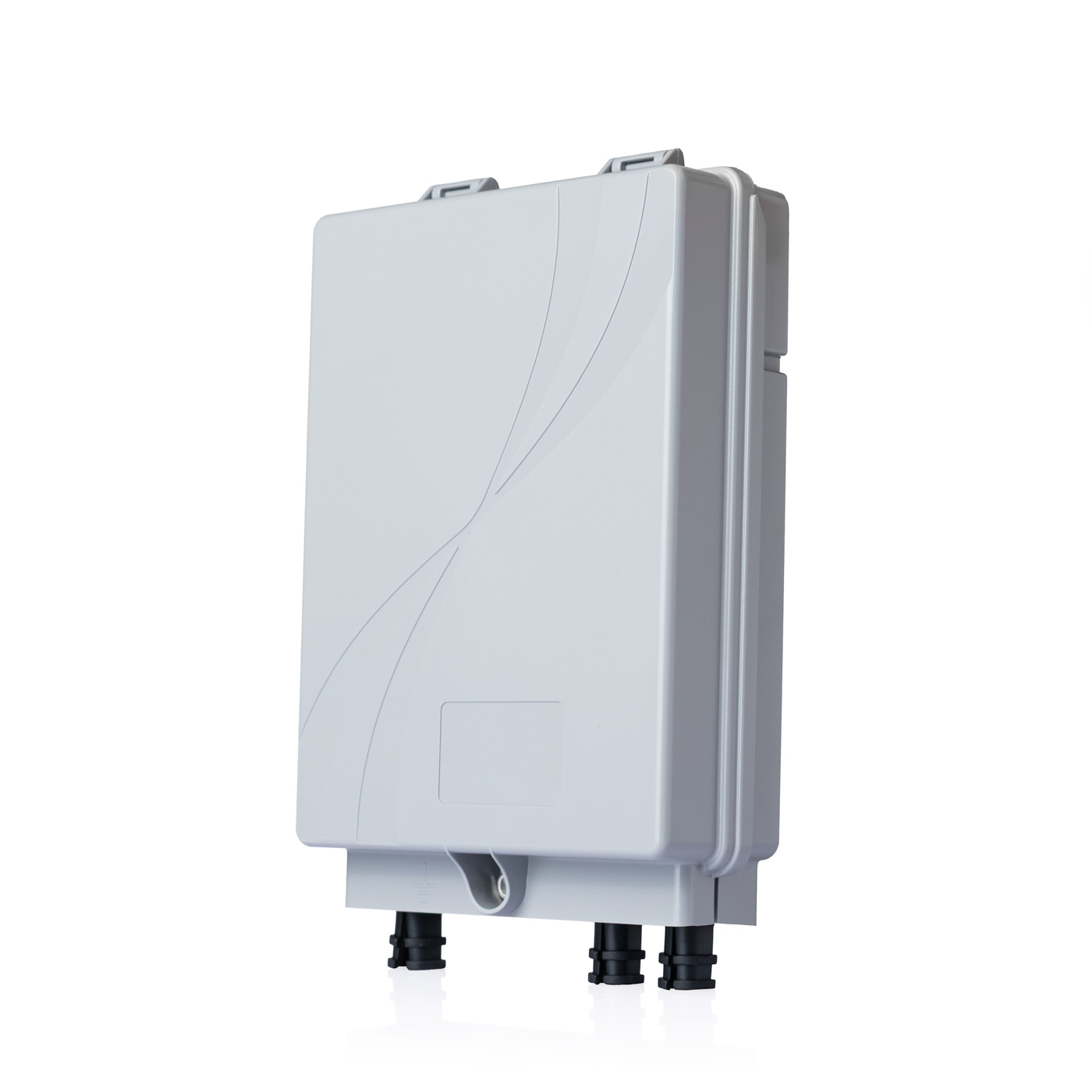

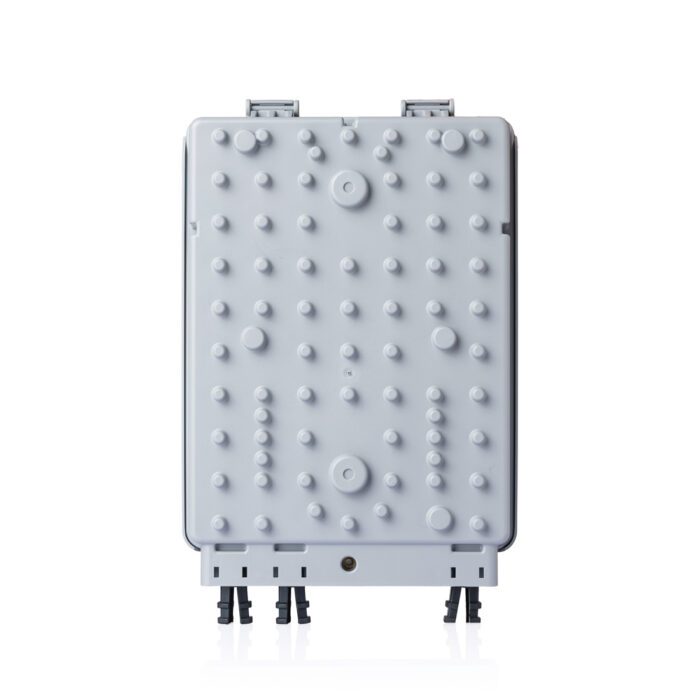

Midsized Deep Base FlexNID (MFLEX-DB) Non Spool Compatible
- Description
- BABA / BEAD (U.S.–Made Versions)
- Ordering Guide
- Compare Our NIDs
- Compare Our Grommets
- Specifications
- Downloads

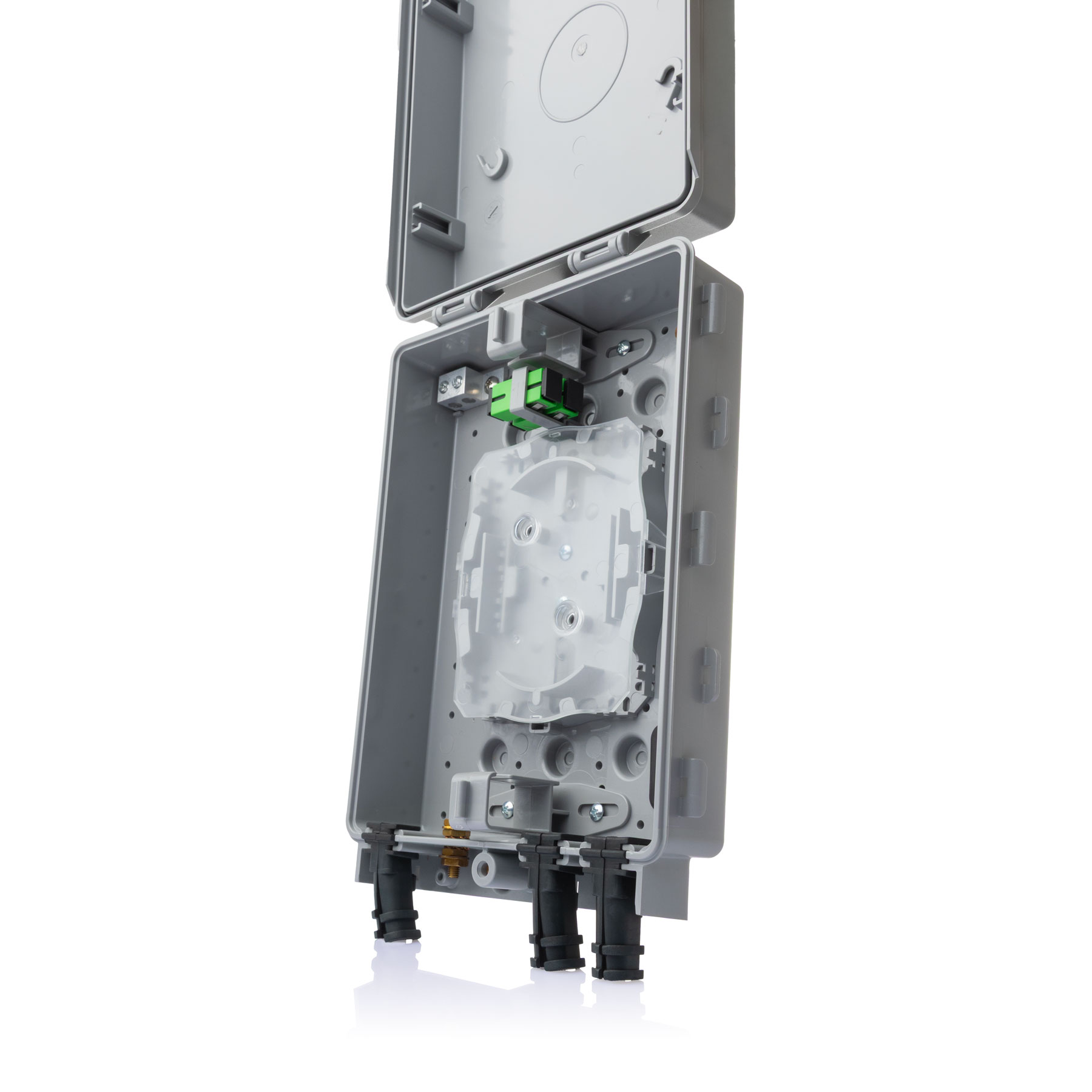

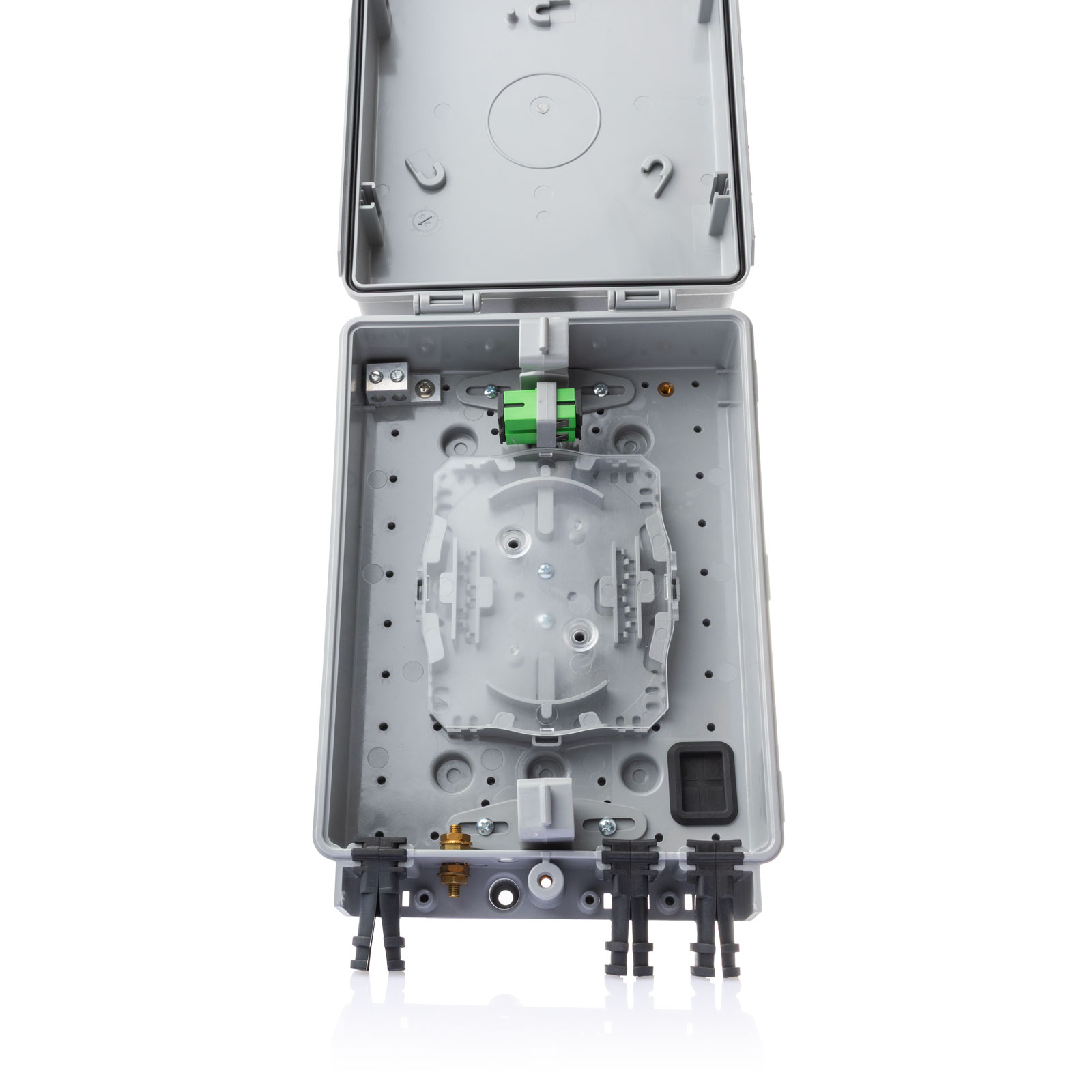

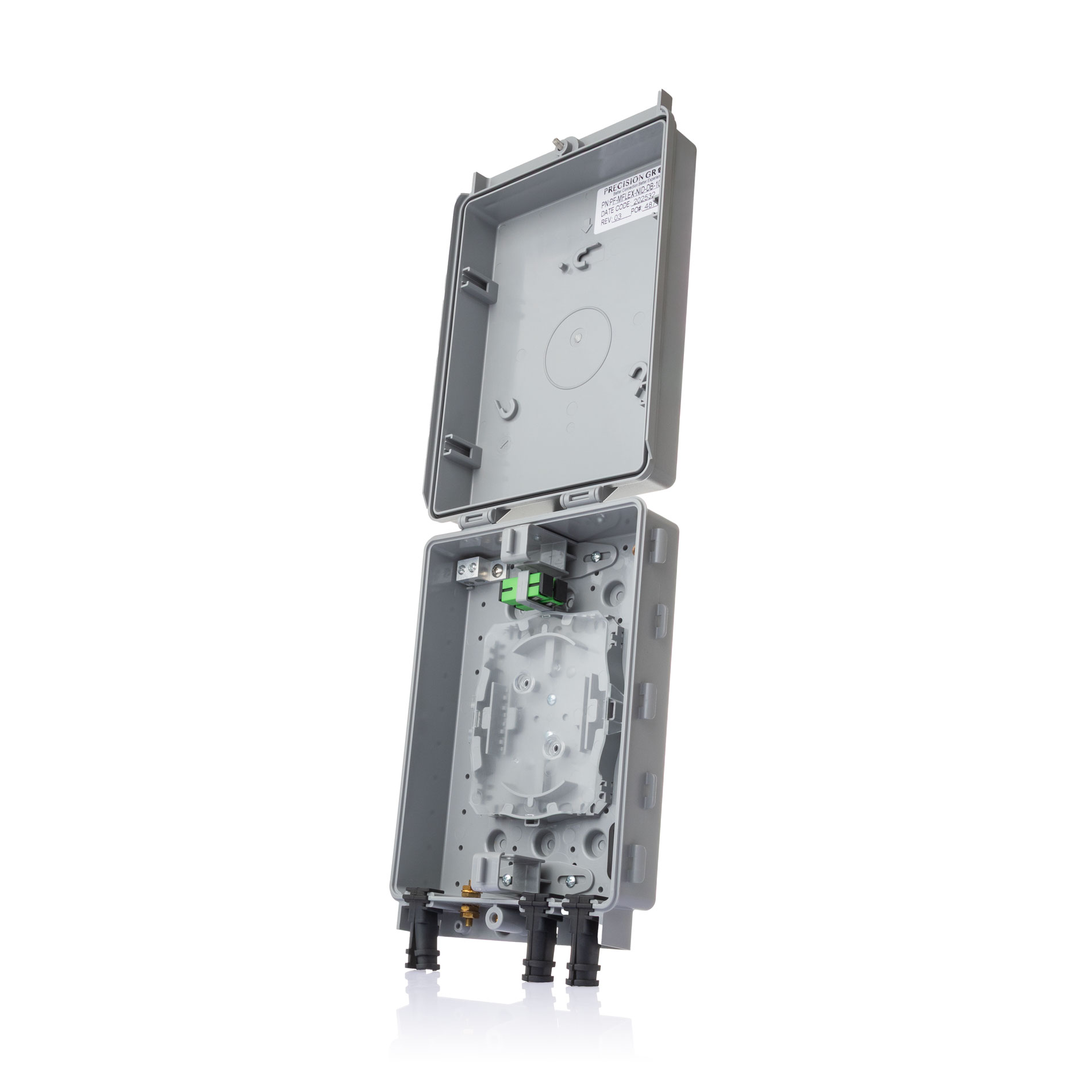

Description
- Pole or Wall Mount
- Field Selectable Bulkhead Positions
- Holds Up To 4 SC or 8 LC Bulkhead Adapters
- Precision Flex Clips Offer 3 Channel Separation of Strength Member, Buffer Tube And I/O Fiber
- Store Over 50 Feet of 3.0mm I/O Fiber
- Flat-drop Channel for Aerial Applications
- Tool-less Clear Splice Tray Cover
- Flexible Mounting Via Internal & External Mounting Positions
- Optional Laser Engraved Logo
- Precision External Locate Lug
- Multifunctional Ground and Strength Member Securement Lug
- Flex-lock Lay-in Cable Entry/exit Grommets Secure And Seal Flat And Round Drop Cable
- Flex-lock Output Grommet For Dual 3.0 Or 4.8mm Round I/o Jumper Standard
- Push-through Grommets For Exiting The Rear Of The Nid
- Optional Microduct Grommets
- Optional Riser Conduit Grommets In Multiple Sizes
BABA / BEAD (U.S.–Made Versions)
Select U.S.–made configurations of this product meet BABA and BEAD compliance requirements.
Compliance is determined at the part-number level.
The part numbers listed below represent the U.S.–made, BABA/BEAD compliant versions of this product.
For project-specific guidance or alternate configurations, please contact your Precision Group representative.
PF-MFLEX-NID-DB-1000-US
MFLEX-Deep Base NID, Flat Grommet Left, Round Grommet Center and Right, 2 SCAPC, Knockout On Base. Non spool version. Made in the U.S.A.
Ordering Guide
Non Spool Compatible
PF-MFLEX-NID-DB-1000
MFLEX-Deep Base NID, Flat Grommet Left, Round Grommet Center and Right, 2 SCAPC, Knockout On Base. Non spool version.
PF-MFLEX-NID-DB-C01CS00-026
Precision Medium FlexNid, Patch and splice with Deeper Base, 2 SCAPC adapters, one flat split grommet on the left port and flat split grommet on the center. Round Split grommet on the right port, splice tray on the bottom.
PF-MFLEX-NID-DB-C01CS00-027
Patch and splice Medium Flex NID with Deeper Base, 2 SCAPC simplex Adapters, one flat split grommet on the left port, one round split grommet on the center and right ports, four zip ties, two units of 1/2″ sticky foam and locate lug, splice tray on the bottom and conduit grommet kit loose in packaging.
PF-MFLEX-NID-DB-C01CS00-063
Patch Only Medium Flex NID with Deeper Base, 2 SCAPC Simplex Adapters, the 2 SCA adapters are mounted on the new L-Bracket, one flat split grommet on the left port, one round split grommet on the center, one round split grommet on the port on the right, four zip ties, two units of 1/2″ sticky foam and locate lug.
PF-MFLEX-NID-DB-C01CS00-064
Patch and splice Medium Flex NID with Deeper Base, 2 SCAPC simplex Adapters, conduit grommet for 1 1/8 inch conduit on the left port, one push-through grommet on the center, one round split grommet for 2 cables on the port on the right, four zip ties, two units of 1/2″ sticky foam, and locate lug, splice tray on the bottom.
PF-FLEXADPCHP-SCA2-V-H-50
Bag of 50, 2 SCA, Snap-in
PF-FLEXADPCHP-SCA4-V-H-50
Bag of 50, 4 SCA, Snap-in
Compare Our NIDs
Compare Our Grommets
Specifications
Dimensions: 9.88″Hx6.61”Wx3.00”D
