Our OptiTap Compatible Splitter provides the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly faster than traditional field installations. The assemblies offer an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch. Our OptiTap Compatible Splitter provides quick installation and easy mating with OptiTap compatible lnline SC/APC connector. Cable with ultra flexible TPU tube protection.

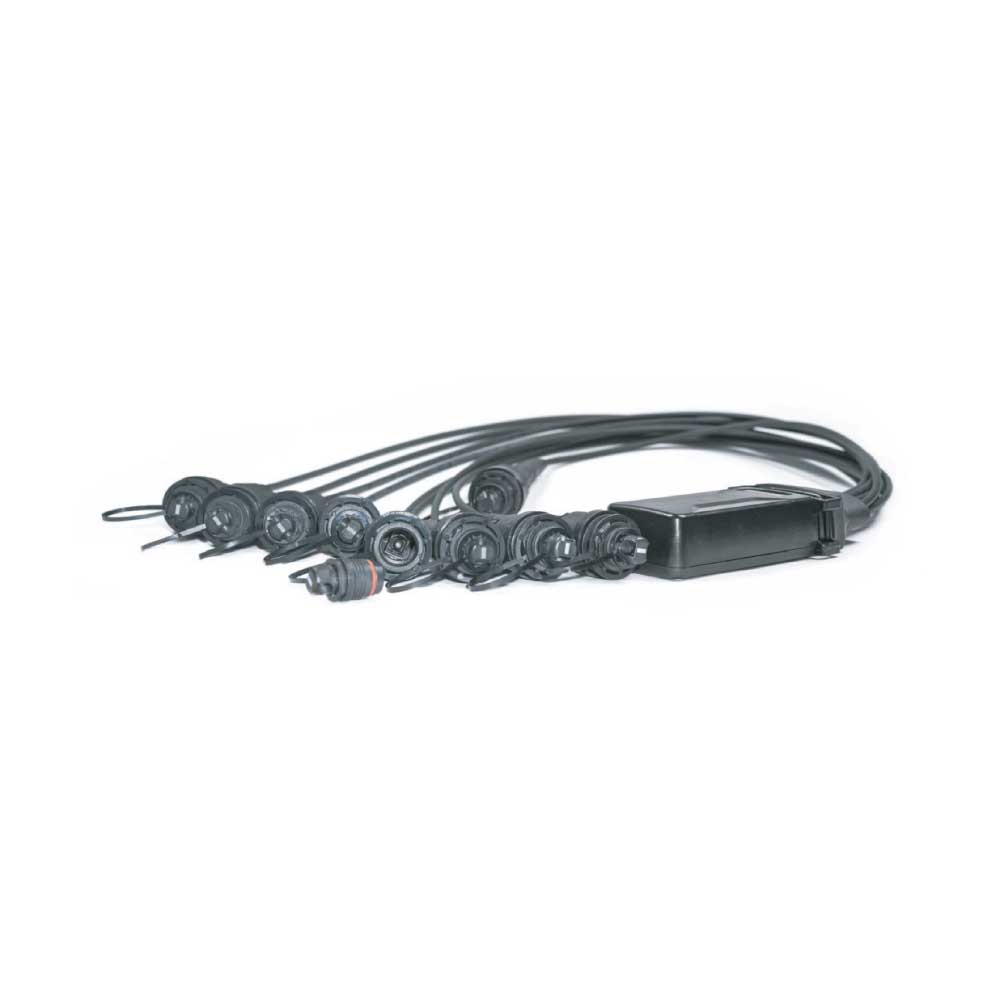

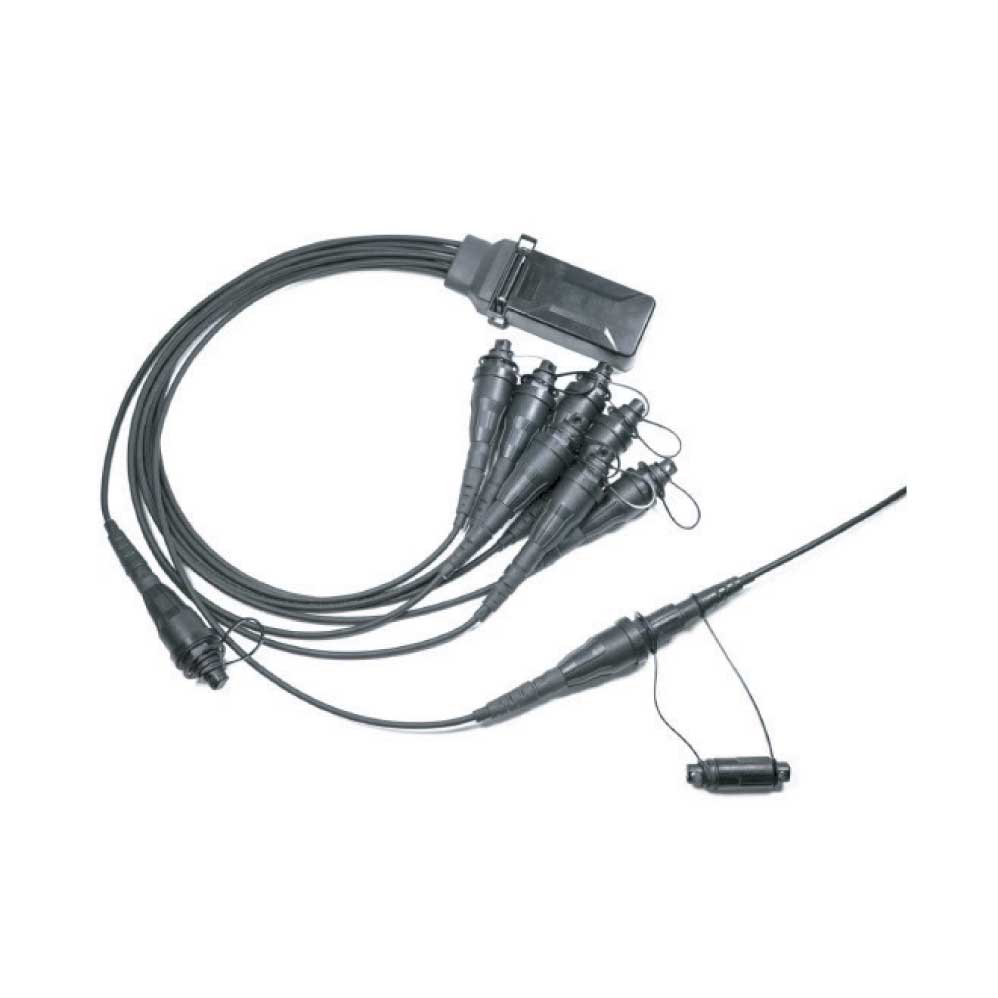

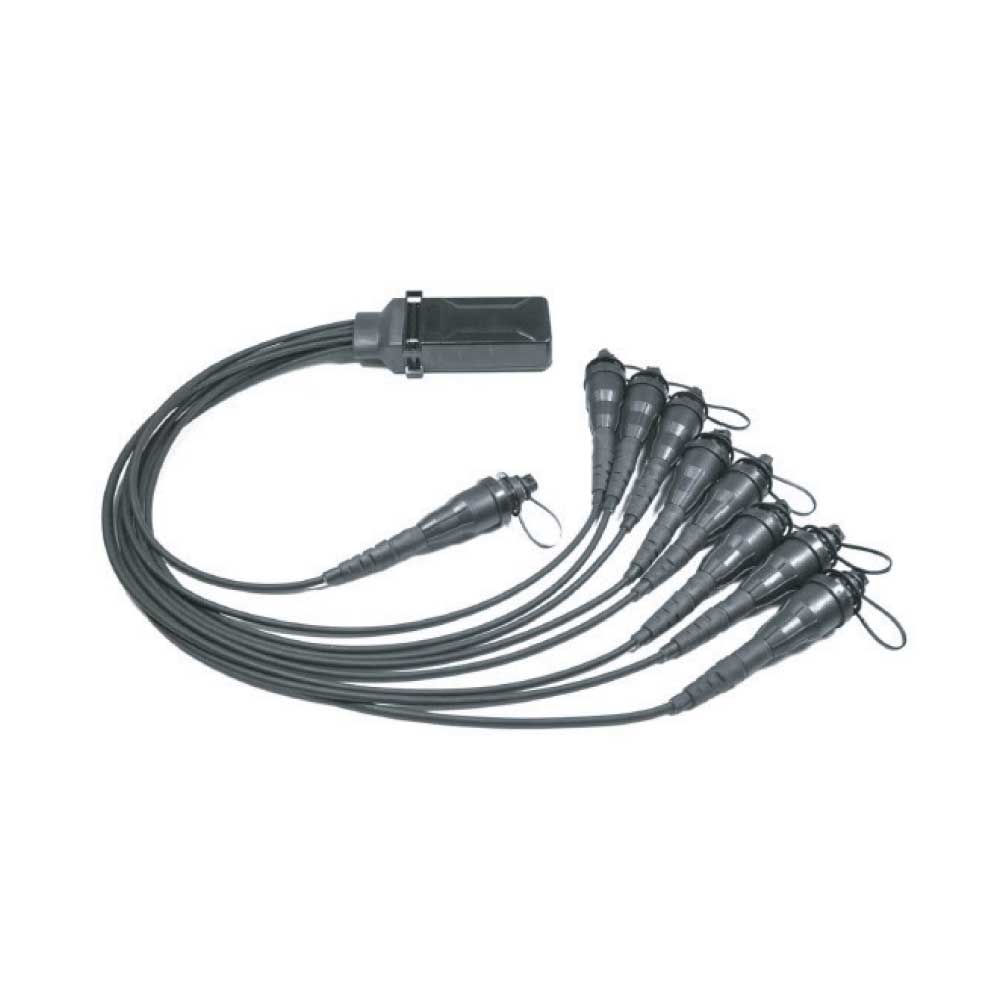

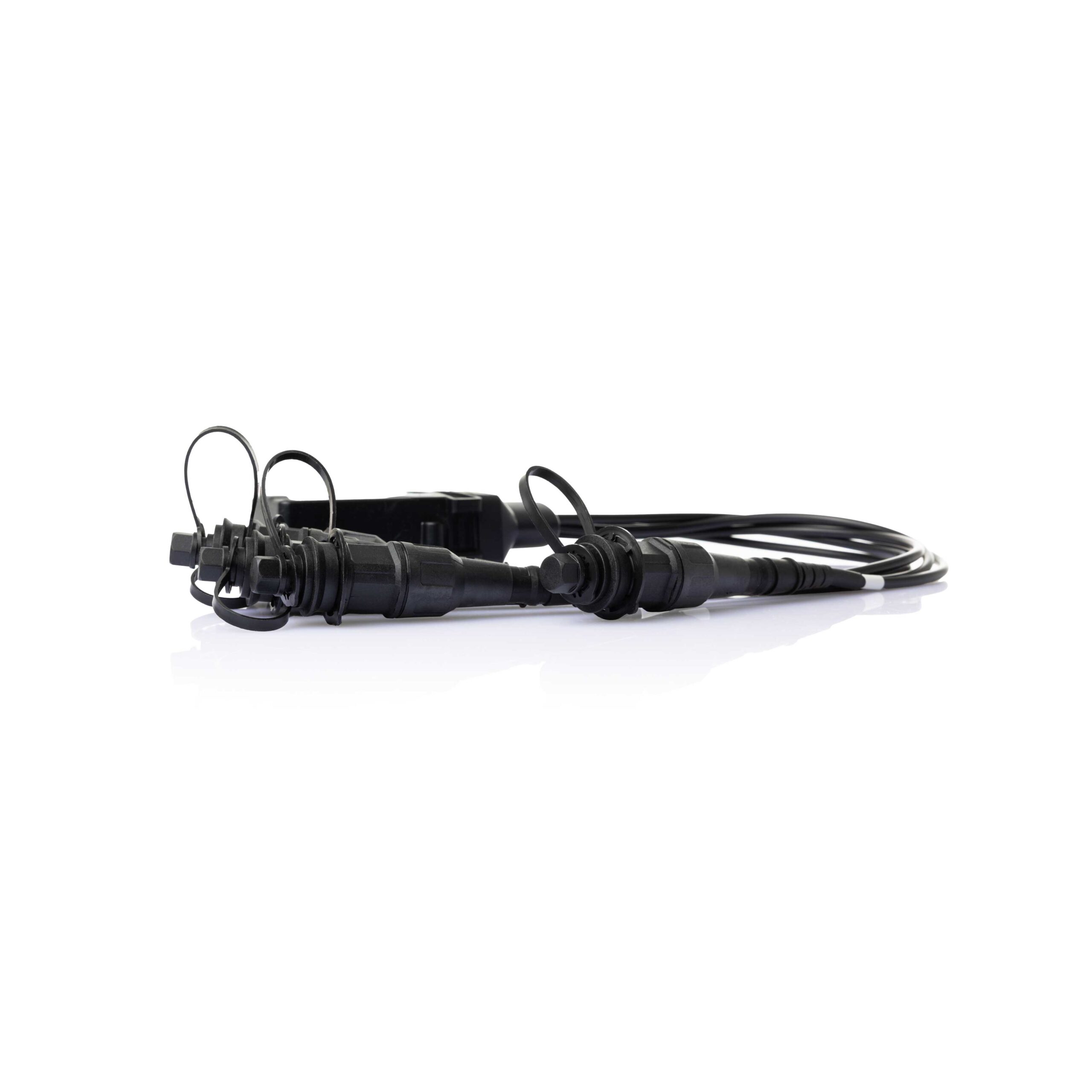

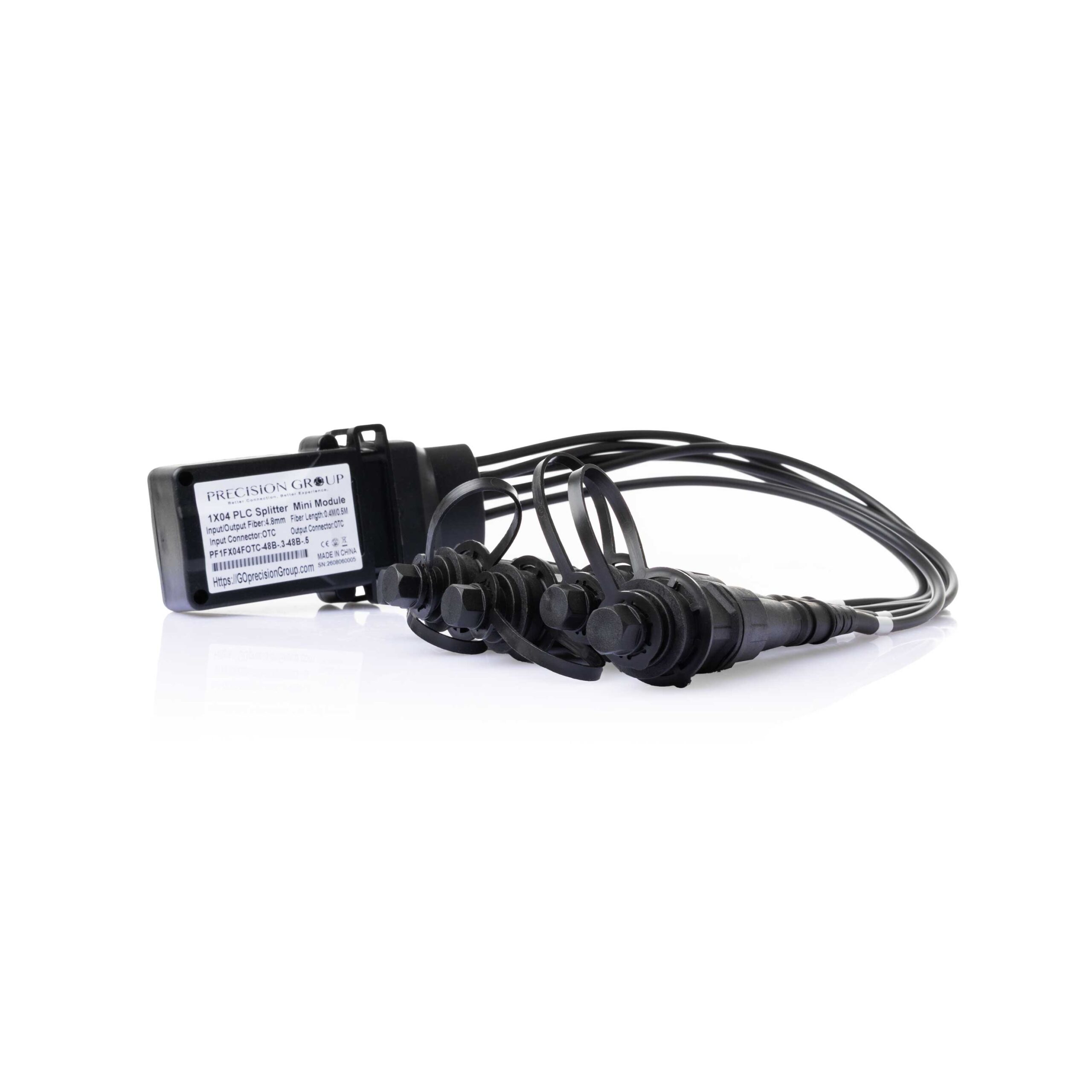

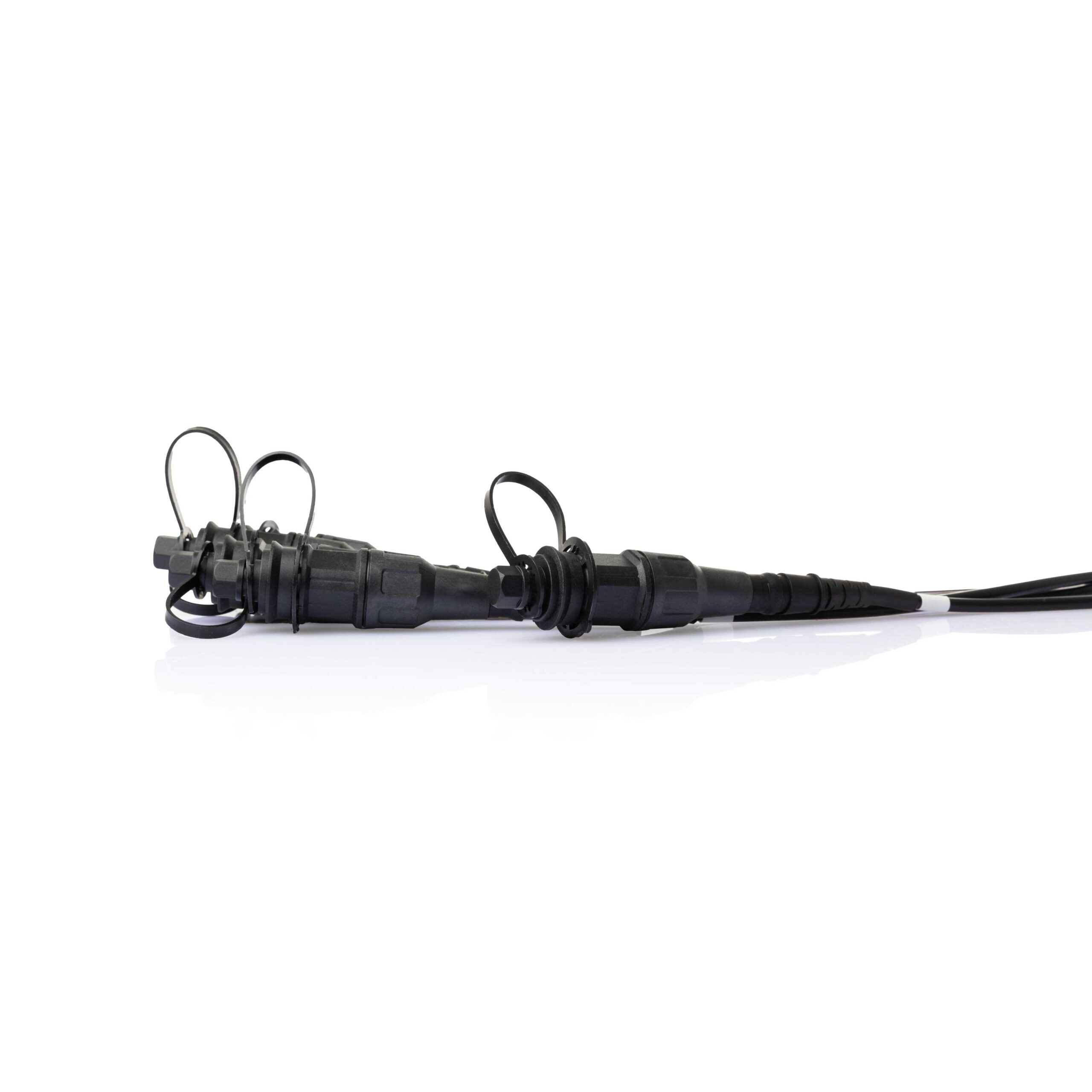

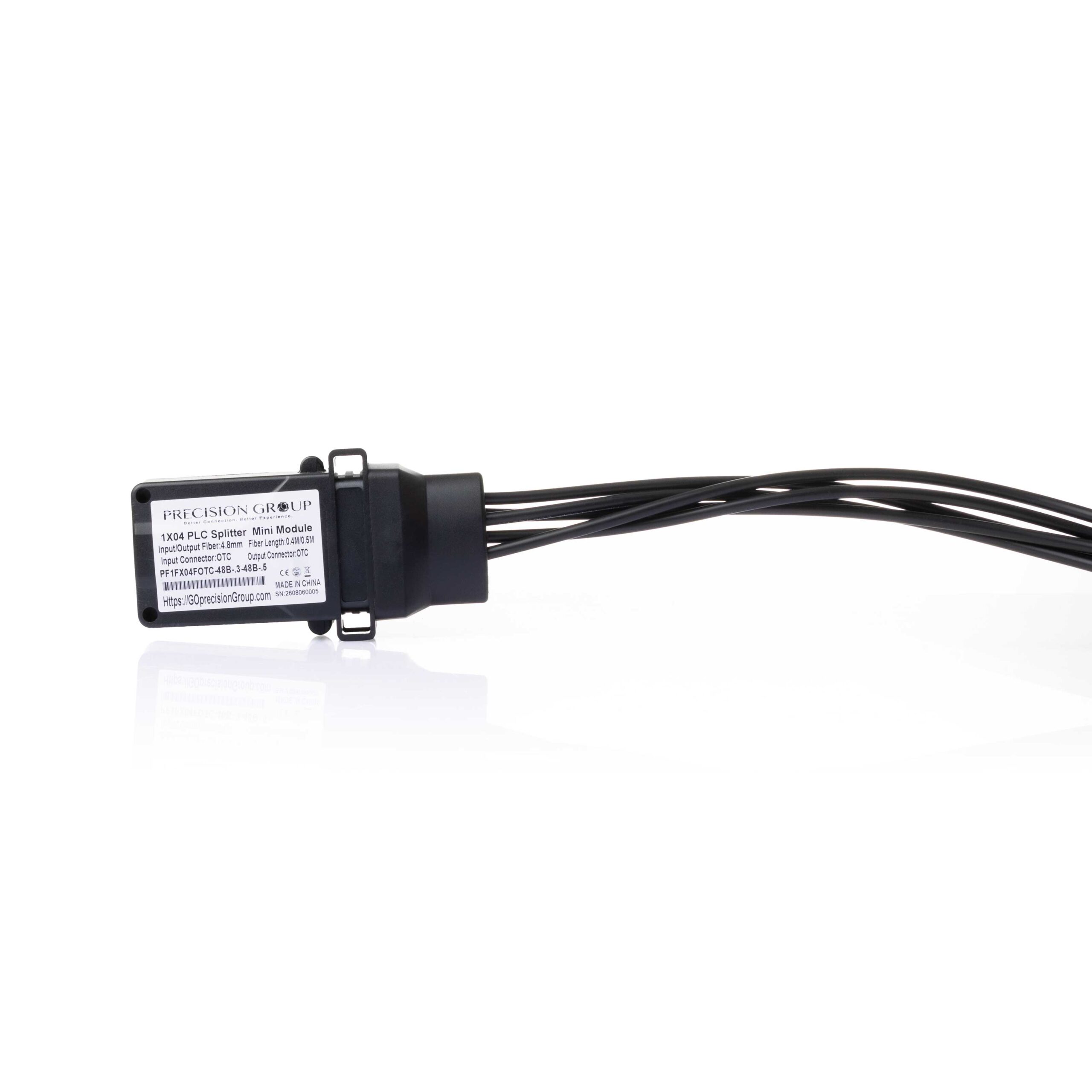

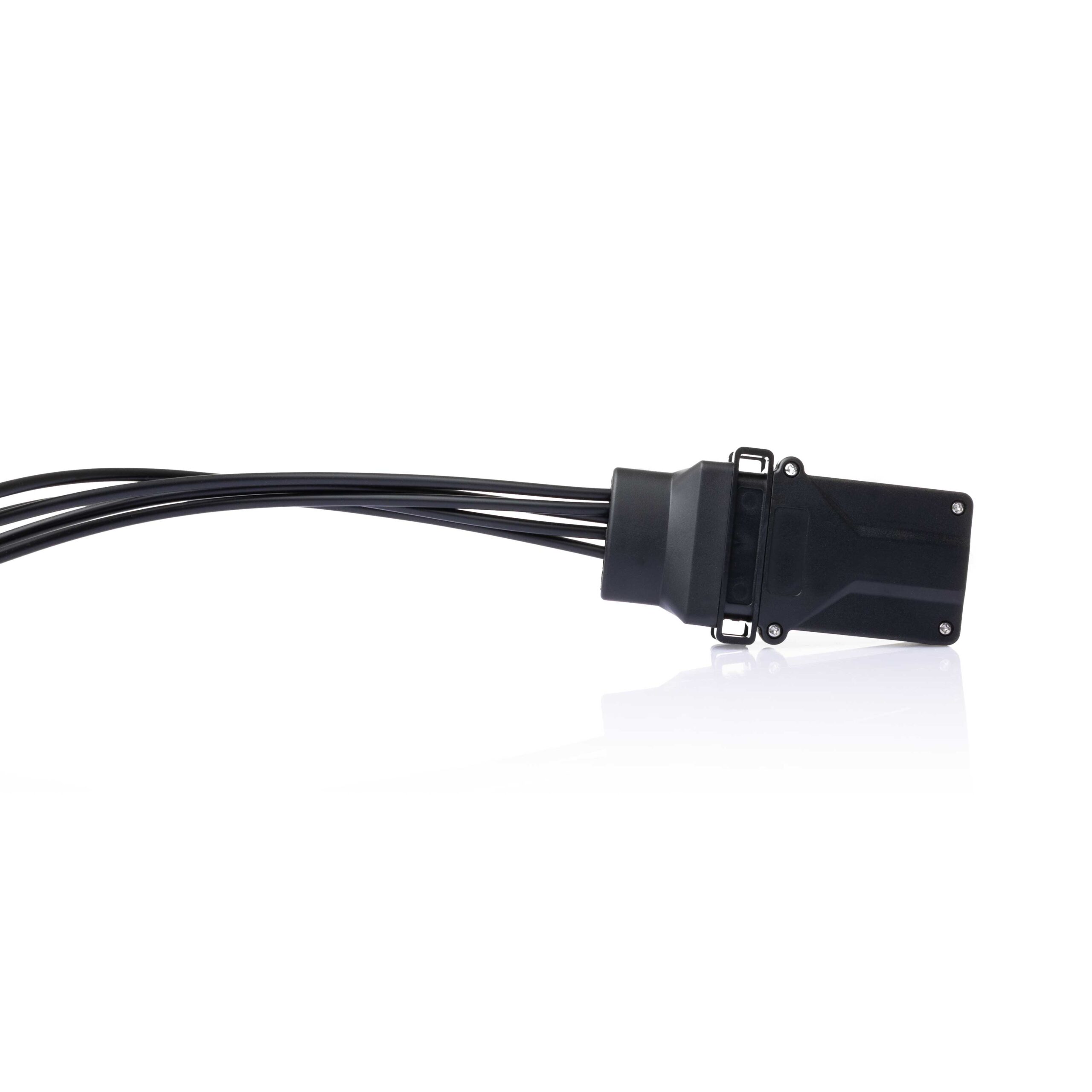

OptiTap Compatible Splitter
Description
- Provides Moisture and Dust Protection for Use in Harsh Industrial Environments.
- IP68 Protection, Salt-Mist Proof, Humidity Proof, Dust Proof.
- Drastically Reduces Field Splicing with a Predetermined Loss at Each Waterproof Tether Access Point.
- Utilize Traditional Field Installation Techniques for Aerial, Below Ground and Duct Applications.
- Reduce Installation Time by as Much as 50 Percent per Network Access Point.
- 100% Optically Tested to Ensure Quality Performance Assemblies.
- Broad Temperature Range (-40 to +70°C) Is Ideal for Indoor or Outdoor Applications.
- Mark on Dust Cap Can Help People Who Cannot Distinguish Between Colors to Operate.

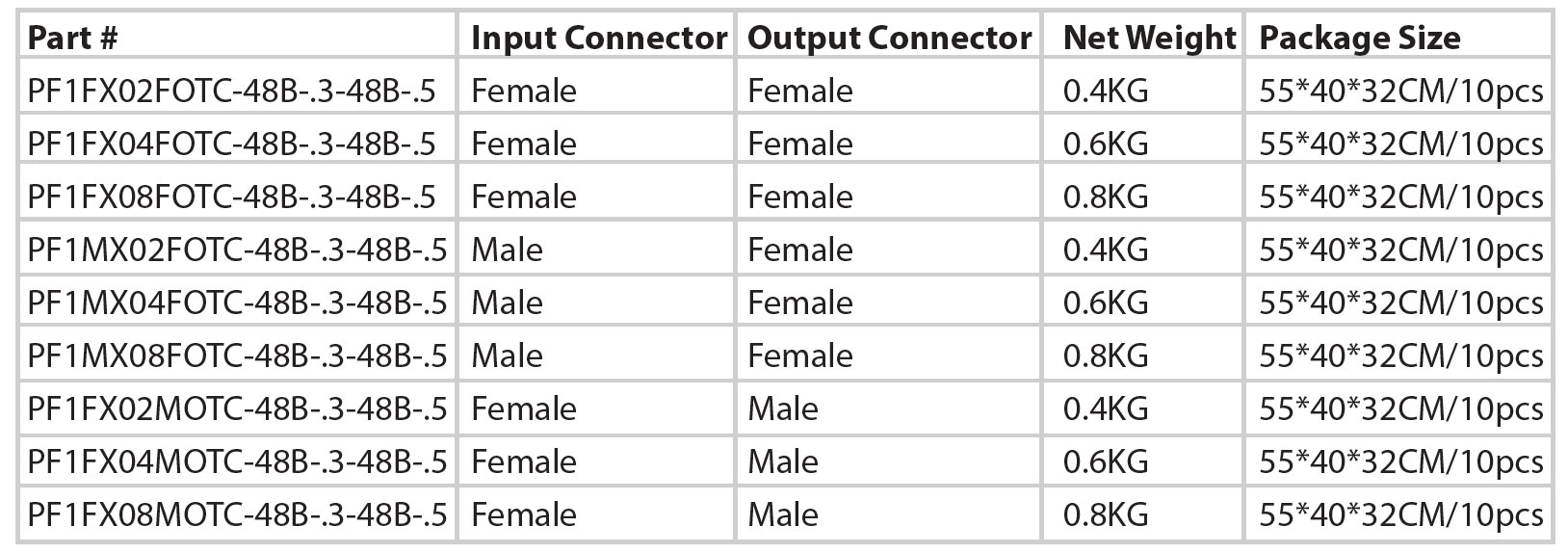

Ordering Guide
Specifications
- Item name: OptiTap Compatible Splitter
- Standard: Comply to GR-3120, GR-3152, IEC 61753-1, IEC 61754-4
- Cable: 4.8-5.0mm Black TPU with ITU-T G.657A1 fiber

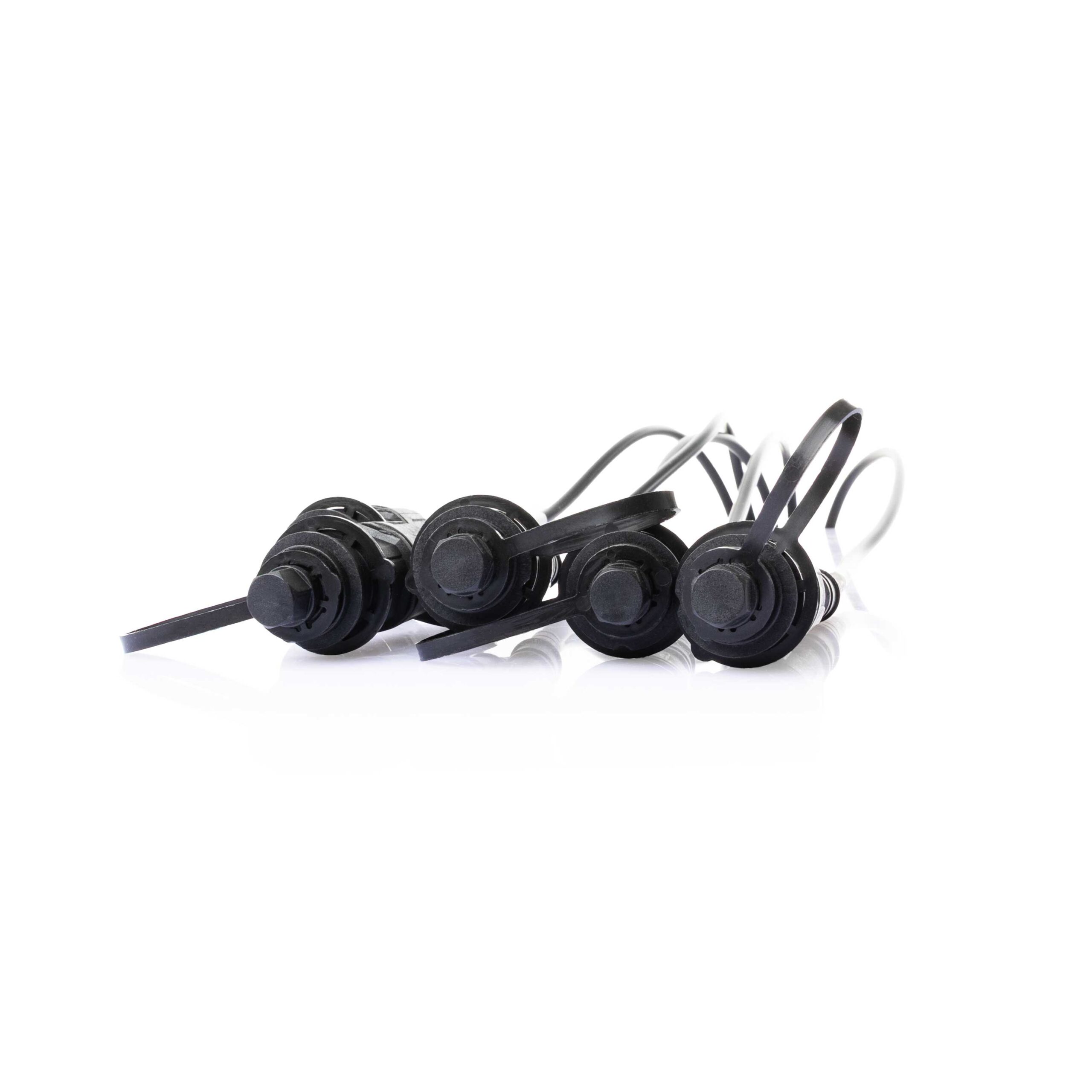

- Connector: OptiTap compatible lnline SC/APC connector
- Input Length: 0.3M or customized
- Output Length: 0.5M or customized

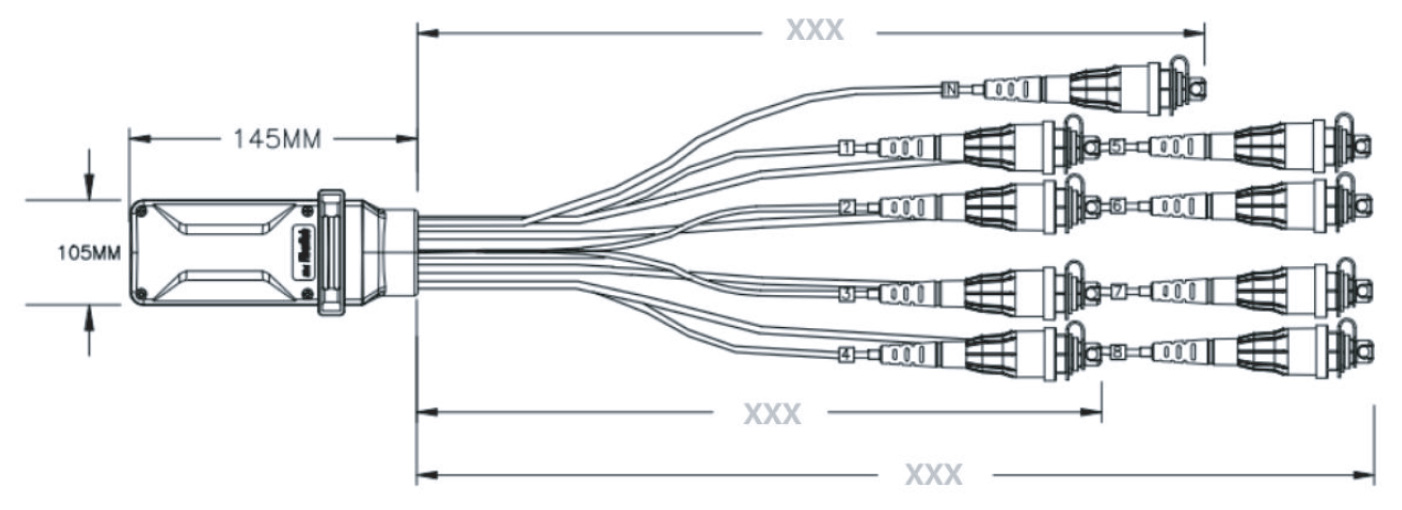

- Closure Size: 145*105*50mmInsertion Loss: 4.5dB Max( 1×2), 7.8dB Max (1×4), 11dB Max (1×8), 13.7dB Max(1×16)
- Return Loss: 55dB Min
- Operation Temperature: -40°C to +70°C
- Waterproof Level: IP68
