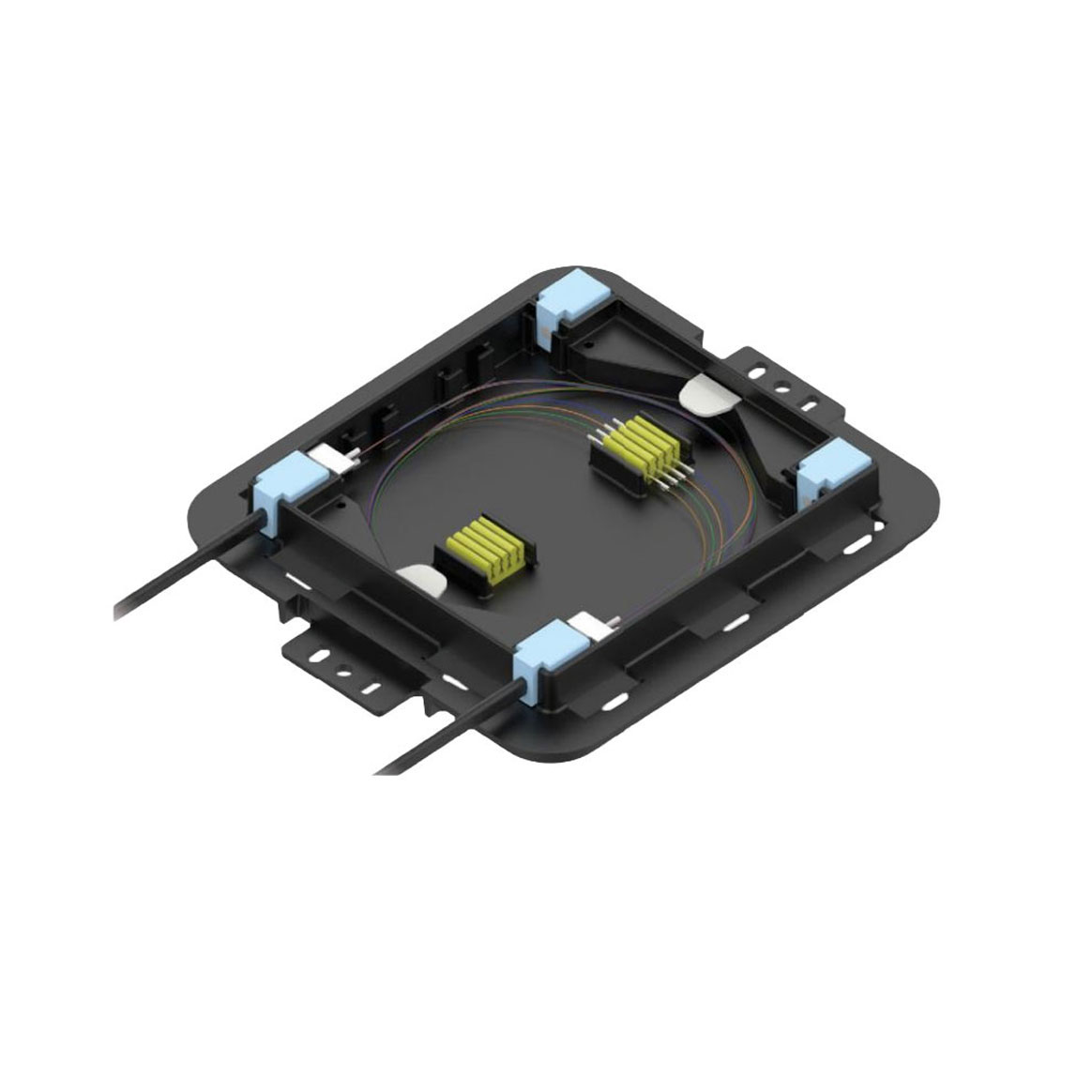

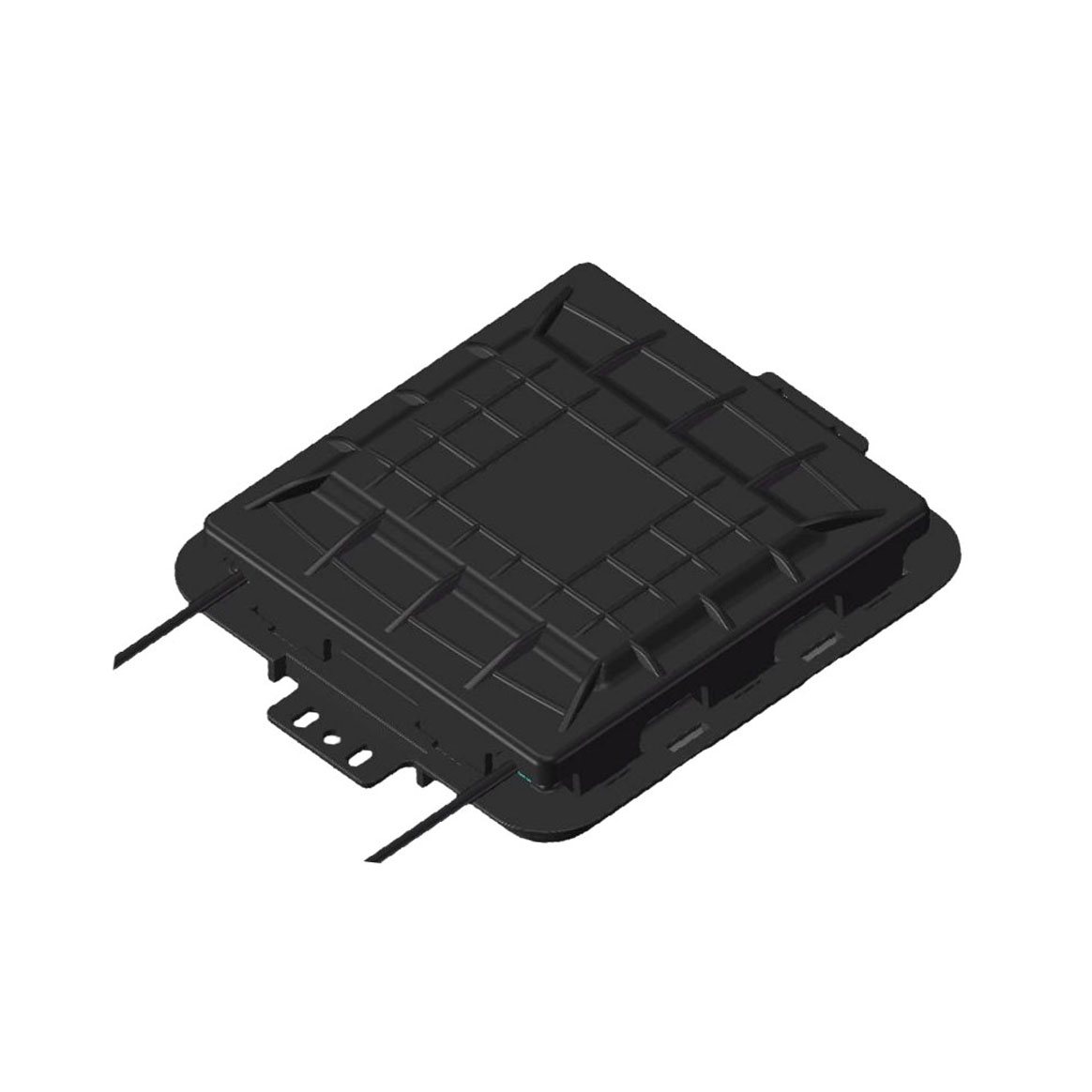

Snapback Distribution Splice Enclosure

Snapback Distribution Splice Enclosure

The Precision Group Snapback Distribution Splice Enclosure is a compact, versatile solution for fiber distribution, service drop restoration, and last-mile FTTH applications. Its four-port design provides installers with the flexibility to route, branch, or distribute fiber in multiple configurations, making it ideal for connecting multiple service drops, deploying splitters, or restoring damaged fiber.

Designed for fast field installation, the Snapback features a screwless snap-lock housing that assembles quickly without special tools. The compact enclosure fits easily into a variety of deployment environments while providing organized fiber management and long-term splice protection. Whether supporting a new service connection or repairing an existing network, the Snapback helps simplify fiber distribution in the field.

Description

  • Four-port design supports flexible fiber distribution and service drop configurations
  • Ideal for underground repairs, drop restoration, splitter deployments, and last-mile FTTH applications
  • Compact splice enclosure supports fusion splicing, mechanical splicing, and PLC splitter applications
  • Screwless snap-lock housing enables fast installation without special tools
  • Simplifies cold-weather installations by eliminating screws and loose hardware
  • Internal fiber management helps maintain organized routing and splice protection
  • Re-enterable design supports future maintenance, upgrades, and service additions

Ordering Guide

PF-SNAPBACK-DRK
4 Port Drop Fiber Repair Kit or 4 Port Distribution Splice Enclosure

Specifications

  • Dimensions: 9.21 × 7.62 × 1.75 in
  • Color: Black
  • Material: PPS Splice Capacity: Single Fusion (Maximum) – 24, Mass Fusion (Maximum) – 36
  • Cable Ports: 4 Cable Diameters: 0.17 – 0.37 in, Flat Drop, and ROCT Drop Cable Installation
  • Configuration: In-Line or Butt
  • Application: Direct Bury, Below Grade, Pole/Wall, Aerial
  • Ingress Protection: In accordance with Telcordia GR-771-CORE, Buried, Underground, IP-68

Downloads

PF-SNAPBACK-DRK Product sheet PDF
