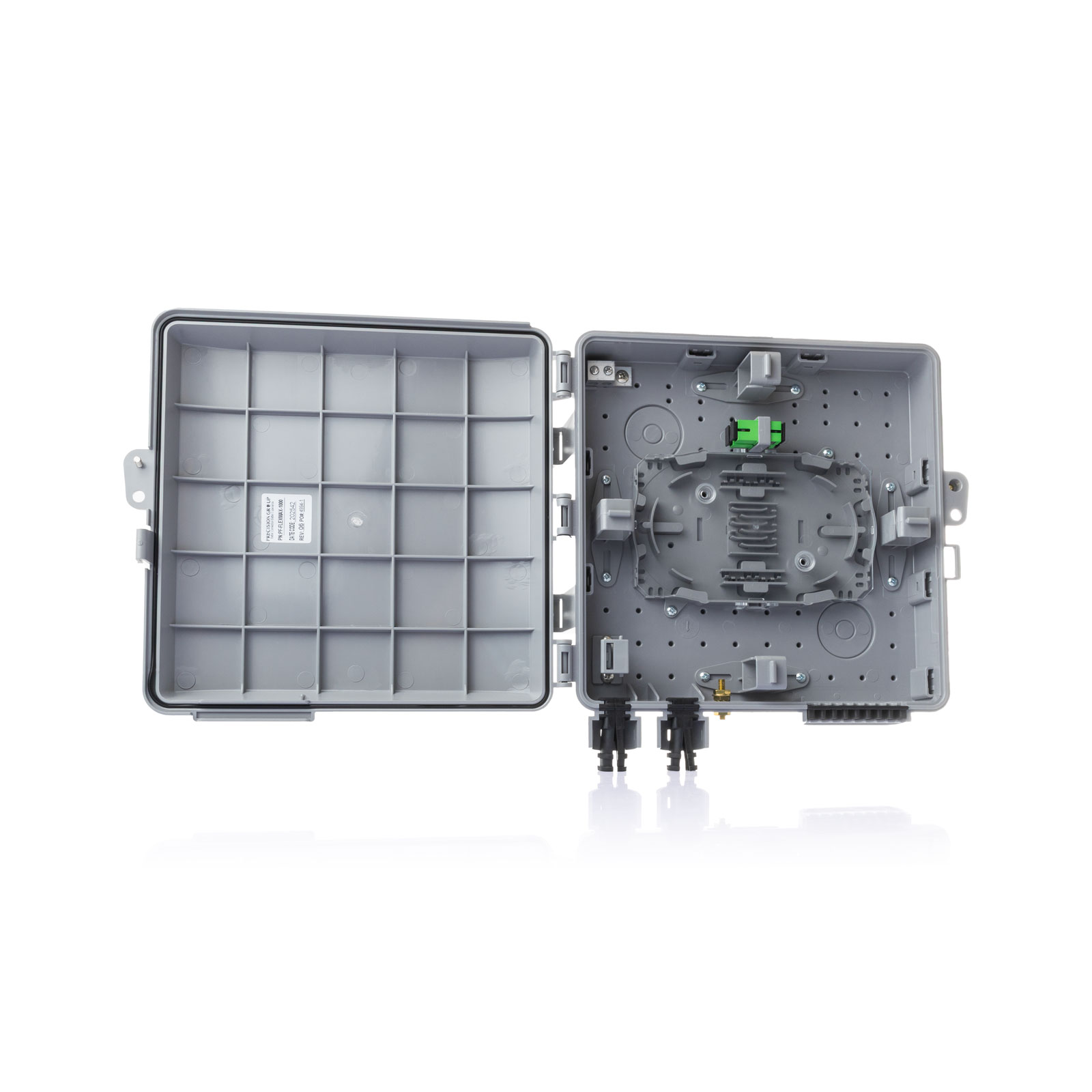

FlexMax NID w/ Fixed Splice Tray

Increased storage for incoming / outgoing fiber without compromising space or function. The perfect all-in-one for SFU & small MDU deployments.

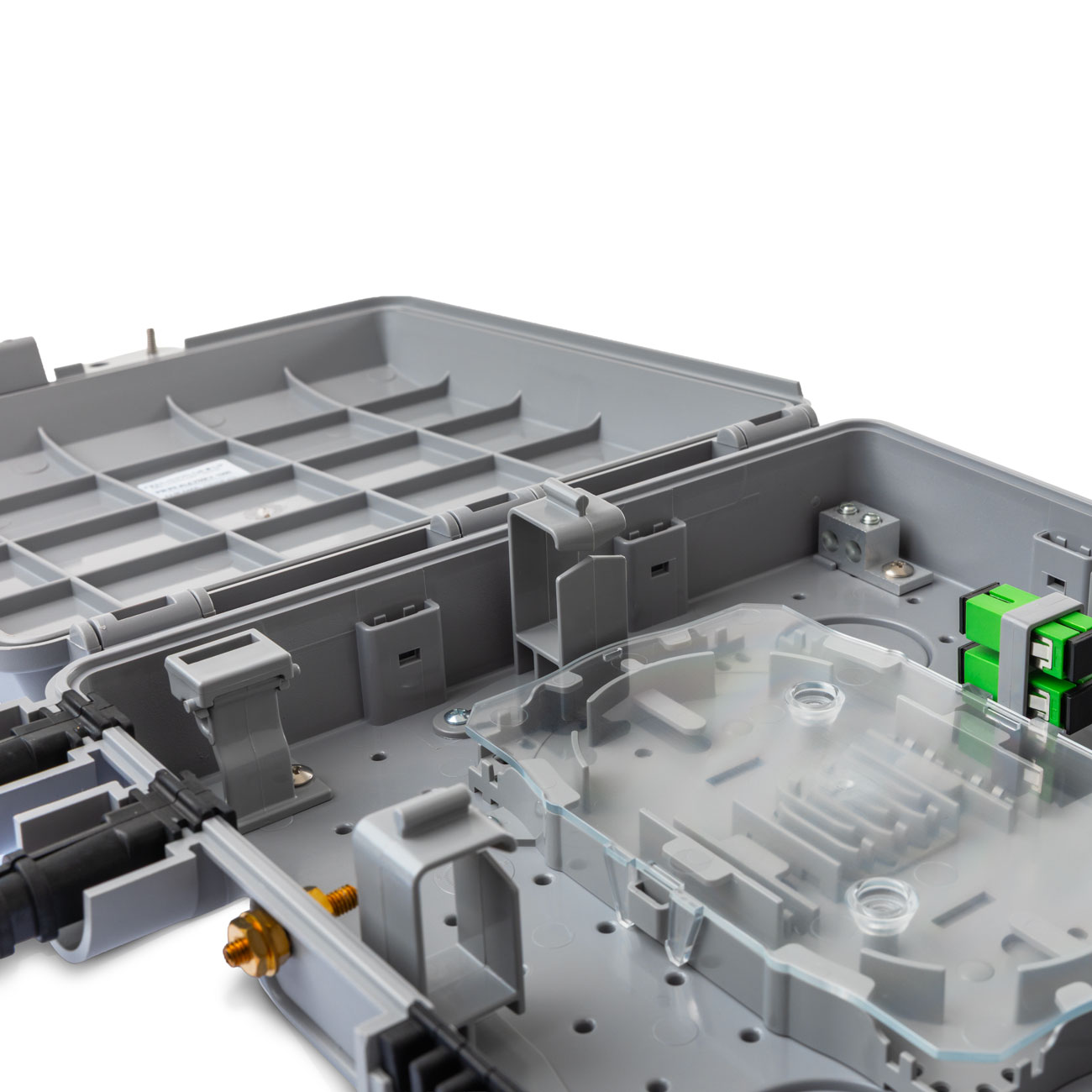

How do you improve on an already popular, feature rich product? Sometimes you just have to simplify it. Our Standard Size Flex NID has been popular with FTTX installers since it’s release because of it’s craft friendly splicing and connectivity features. But…some installers really wanted more slack storage. So we gave you both! We’ve made slack storage the star in this version by moving the splice tray to the back of the NID and maximizing space in the storage system. Installers still get great splicing accommodation but with substantially increased slack storage!

Compare Our NIDs
Compare Our NIDs Download
Compare Our Grommets

Description

  • Holds Up To 4 SC Or 8 LC Bulkhead Adapters
  • Field Selectable Bulkhead Positions
  • Precision Flex Clips Offer 3 Channel Separation Of Strength Member, Buffer Tube And I/O Fiber
  • Store Over 100’ Of 3.0mm I/O Jumper
  • Fixed Splice Tray Holds Up To 12 Splices And Optional PLC Splitter
  • Optional Laser Engraved Logo
  • Precision External Location Lug
  • Optional Flex-Lock Multiport Fiber And Microduct Grommets
  • Optional Riser Conduit Grommet
  • Multifunctional Ground And Strength Member Securement Lug
  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

Ordering Guide

PF-FLEXMAX-1000
Precision FLEXMAX NID, Patch & Splice, With qty 2 SCAPC Adapters. Lay-In Flat Split Grommet left, Lay-In Round Drop Split Grommet Center, Lay-In 8 count Drop Grommet Right. Fixed Splice Tray.

PF-FLEXMAX-1001
Precision FLEXMAX NID, Patch & Splice, With qty 2 SCAPC Adapters. Lay-In Flat Split Grommet left, Lay-In Round Drop Split Grommet Center, Lay-In 8 count Drop Grommet Right. Qty 1 900 micron Pigtail. Fixed Splice Tray.

PF-FLEXMAX-1002
Precision FLEXMAX NID, Patch & Splice, With qty 2 SCAPC Adapters. Lay-In Flat Split Grommet left, Lay-In Round Drop Split Grommet Center, Lay-In 8 count Drop Grommet Right. Qty 2 900 micron Pigtails. Fixed Splice Tray.

PF-FLEXMAX-100C
Precision FLEXMAX NID, Patch & Splice, With qty 2 SCAPC Adapters. Lay-In Flat Split Grommet left, Lay-In Round Drop Split Grommet Center, Lay-In 8 count Drop Grommet Right. Conduit Grommet loose in package. Fixed Splice Tray.

Compare Our NIDs

Compare Our NIDs
Compare Our NIDs Download

Compare Our Grommets

Compare Our Grommets

Specifications

Dimensions: 10.2″Hx10.6”Wx3”D

Downloads

PFFLEXMAX Product sheet PDF
