The Precision Group NID line offers enhanced ease, speed, and efficiency for installers, coupled with a visually appealing aesthetic at the customer’s premise.

Our NIDs are thoughtfully designed by installers, for installers ensuring a seamless user experience and reduced deployment time … problem solved.

Compare Our NIDs PDF Download

Compare Our NIDs

Compact Flex NID (C-FLEX)

Industry leading compact design reduces install cost and time while complimenting a low-profile curb appeal. Who says bigger is better?

Front of the Precision Group CFLEX NID
Precision Group Compact Flex NID

  • Dimensions: 7.6″Hx4”Wx2”D

  • Optional Laser Engraved Logo

  • Precision External Location Lug

  • Optional Flex-Lock Multiport Fiber And Microduct Grommets

  • Optional Riser Conduit Grommet

  • Multifunctional Ground And Strength Member Securement Lug

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

  • Pole Or Wall Mount
  • Low Profile Design For Customer Pleasing Aesthetics
  • Integrated Slack Storage For 3.0mm Or 4.8mm I/O Cable

Midsized Flex NID (M-FLEX)

The perfect balance between function and design, the M-FLEX addresses all installer needs and profile requirements.

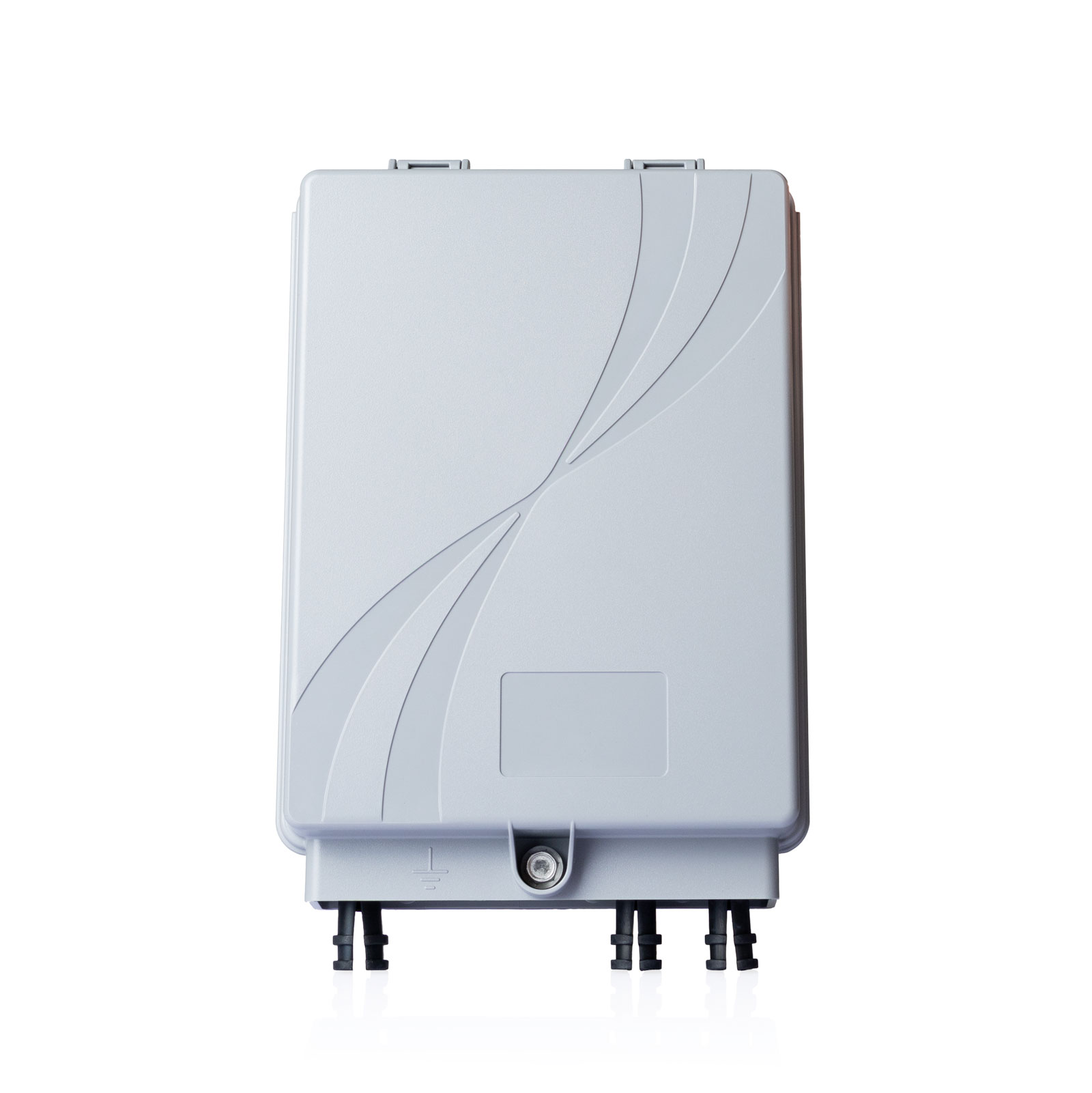

Midsized Flex NID (M-FLEX) Closed Front

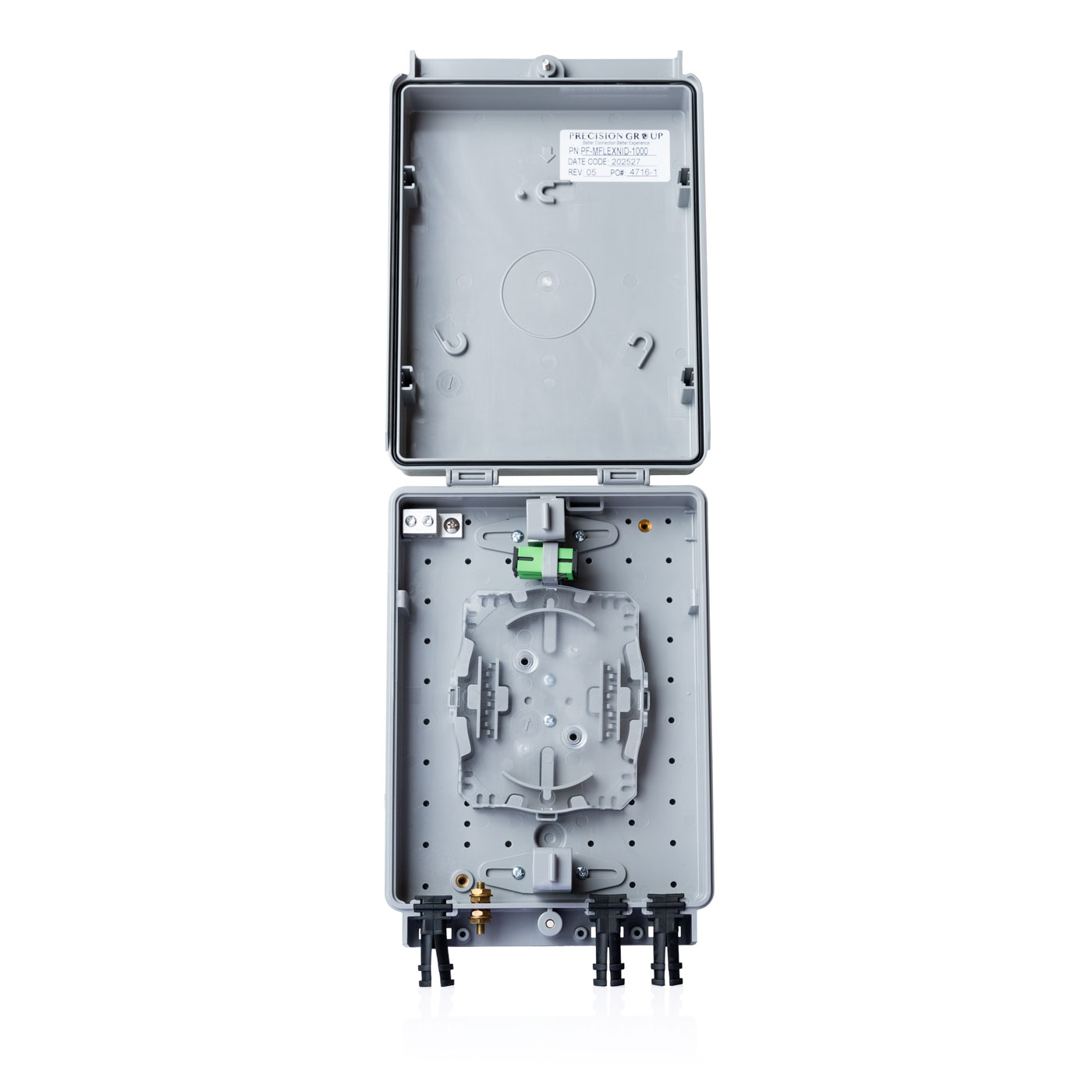

Midsized Flex NID (M-FLEX) Open Front View

  • Dimensions: 9″Hx6.15”Wx2.25”D

  • Optional Laser Engraved Logo

  • Precision External Location Lug

  • Optional Flex-Lock Multiport Fiber And Microduct Grommets

  • Optional Riser Conduit Grommet

  • Multifunctional Ground And Strength Member Securement Lug

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

  • Pole Or Wall Mount

  • Field Selectable Bulkhead Positions

  • Holds Up To 4 SC Or 8 LC Bulkhead Adapters

  • Precision Flex Clips Offer 3 Channel Separation Of Strength Member, Buffer Tube And I/O Fiber
  • Store Over 50 Feet Of 3.0mm I/O Fiber

Midsized Deep Base FlexNID (MFLEX-DB) Non Spool Compatible

Optimized for maximum cable management and storage capability for standard I/O jumpers.

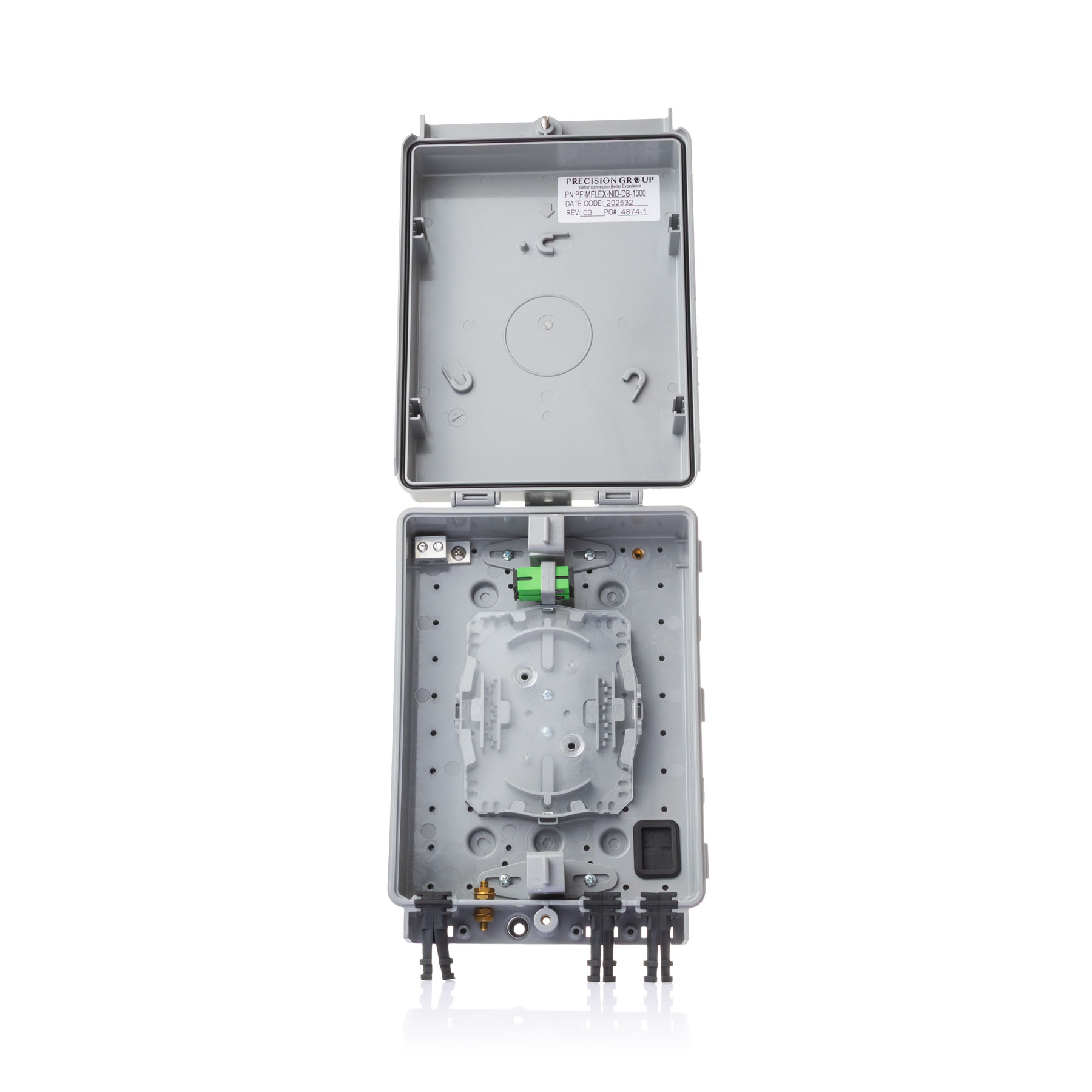

Midsized Deep Base FlexNID (MFLEX-DB) Non Spool Compatible Front
Non spool compatible mflex db
  • Dimensions: 9.88″Hx6.61”Wx3.00”D

  • Optional Laser Engraved Logo

  • Precision External Location Lug

  • Multifunctional Ground And Strength Member Securement Lug

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

  • Optional Flex-Lock Multiport Fiber And Microduct Grommets

  • Optional Riser Conduit Grommet

  • Pole Or Wall Mount

  • Field Selectable Bulkhead Positions

  • Holds Up To 4 SC Or 8 LC Bulkhead Adapters

  • Precision Flex Clips Offer 3 Channel Separation Of Strength Member, Buffer Tube And I/O Fiber
  • Store Over 50 Feet Of 3.0mm I/O Fiber
  • Push-Through Grommets For Exiting The Rear of the NID
  • Flat-Drop Channel for Aerial Applications
  • Tool-less Clear Splice Tray Cover
  • Flexible Mounting Via Internal & External Mounting Positions
  • Flex-lock Output Grommet for Dual 3.0 or 4.8mm Round I/O Jumper Standard
  • Optional Microduct Grommets

Midsized Deep Base FlexNID (MFLEX-DB) Spool Compatible

Integrates with Precision Group’s new line of pre-loaded I/O jumper spools.

Midsized Deep Base FlexNID (MFLEX-DB) Spool Compatible Front
MFLEX DBS Spool Compatible
  • Dimensions: 9.88″Hx6.61”Wx3.00”D

  • Optional Laser Engraved Logo

  • Precision External Location Lug

  • Multifunctional Ground And Strength Member Securement Lug

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

  • Optional Flex-Lock Multiport Fiber And Microduct Grommets

  • Optional Riser Conduit Grommet

  • Pole Or Wall Mount

  • Field Selectable Bulkhead Positions

  • Holds Up To 4 SC Or 8 LC Bulkhead Adapters

  • Precision Flex Clips Offer 3 Channel Separation Of Strength Member, Buffer Tube And I/O Fiber
  • Store Over 50 Feet Of 3.0mm I/O Fiber on a Spool
  • Push-Through Grommets For Exiting The Rear of the NID
  • Flat-Drop Channel for Aerial Applications
  • Tool-less Clear Splice Tray Cover
  • Flexible Mounting Via Internal & External Mounting Positions
  • Flex-lock Output Grommet for Dual 3.0 or 4.8mm Round I/O Jumper Standard
  • Optional Microduct Grommets

Express NID with Optional Slack Basket

Express NID with Optional Slack Basket
Express NID Open
  • Dimensions: 9.89” Wx10.25“Lx2.95”D
  • Optional Laser Engraved Logo
  • Optional Locate Lug
  • Flex-lock Lay-in Cable Entry/exit Grommets Secure And Seal Flat And Round Drop Cable
  • Optional Flex-lock Multiport Fiber And Microduct Grommets
  • Optional Riser Conduit Grommet
  • Holds Up To 12 Sc Bulkhead Adapters
  • Store Over 100’ Of Precision Micro Drop When Partnered With Optional Express Basket
  • Store Over 100’ Of 3.0mm I/o Jumper
  • Fixed Splice Tray And Plc Splitter Position
  • Designed Specifically For Preconnectorized Drop And Slack Storage Deployment
  • Push-through Grommets For Exiting The Rear Of The Express NID
  • Tool-less “Snap And Secure” Connection To Precision Express Basket For Optimal Cable Storage
  • Integrated External Flat Drop Securement Side Channel
  • Flat drop channel for aerial applications

Tool-Less Express NID (EXPRESSTL)

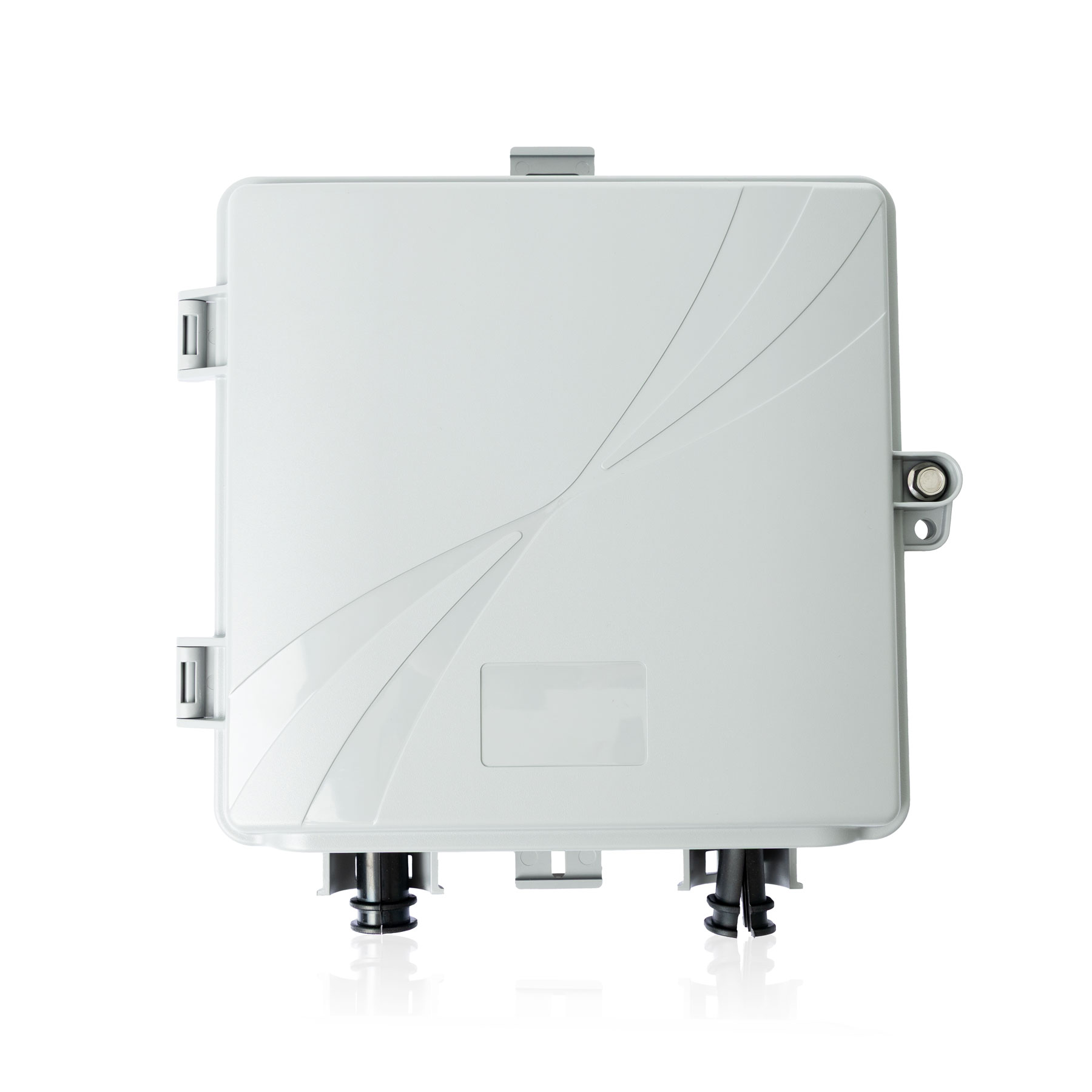

Express TL NID

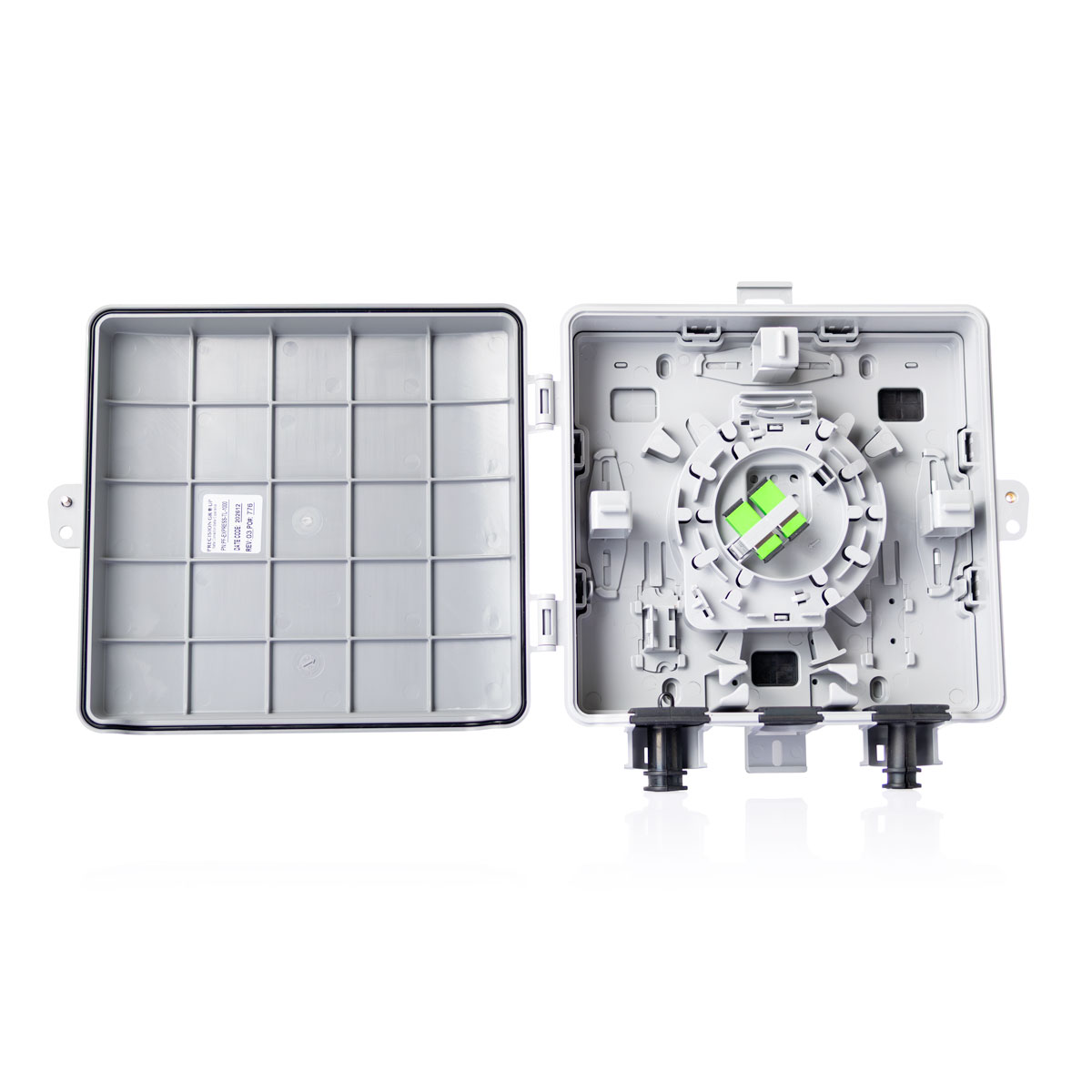

Express TL NID opened
  • Dimensions: 9.89” Wx10.25“Lx2.95”D
  • Optional Laser Engraved Logo
  • Optional Locate Lug
  • Flex-lock Lay-in Cable Entry/exit Grommets Secure And Seal Flat And Round Drop Cable
  • Optional Flex-Lock Multiport Fiber And Microduct Grommets
  • Optional Riser Conduit Grommet
  • Holds up to 6 SC or 12 LC Bulkhead Adapters
  • Fixed Splice Tray And Plc Splitter Position
  • Designed Specifically For Preconnectorized Drop And Slack Storage Deployment
  • Push-through Grommets For Exiting The Rear Of The Express NID
  • Tool-less “Snap And Secure” Connection To Precision Express Basket For Optimal Cable Storage
  • Flat drop channel for aerial applications
  • Multifunctional Ground And Strength Member Securement Lug
  • Engineered for efficient, cost effective manufacturing and user flexibility.
  • Designed Specifically For Preconnectorized Drop And Slack Storage Deployment
  • Toolless Backplates
  • Uses Cable Management Clips from FlexMax and MFLEX lines

Standard Flex NID (FlexNID)

Feel comfortable with the NID you’re in! The FlexNID delivers with Industry leading installer efficiency, securement, and fiber management.

Standard Flex NID Front
Standard Flex NID open

  • Dimensions: 10.2″Hx10.6”Wx3”D

  • Optional Laser Engraved Logo

  • Precision External Location Lug

  • Optional Flex-Lock Multiport Fiber And Microduct Grommets

  • Optional Riser Conduit Grommet

  • Multifunctional Ground And Strength Member Securement Lug

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

  • Splice Tray Locks In Open Position For Installer Access
  • Field Selectable Bulkhead Positions
  • Channel Separation For Drop And I/O Fiber

FlexMax NID w/ Fixed Splice Tray

Increased storage for incoming / outgoing fiber without compromising space or function. The perfect all-in-one for SFU & small MDU deployments.

FlexMax NID Precision Group

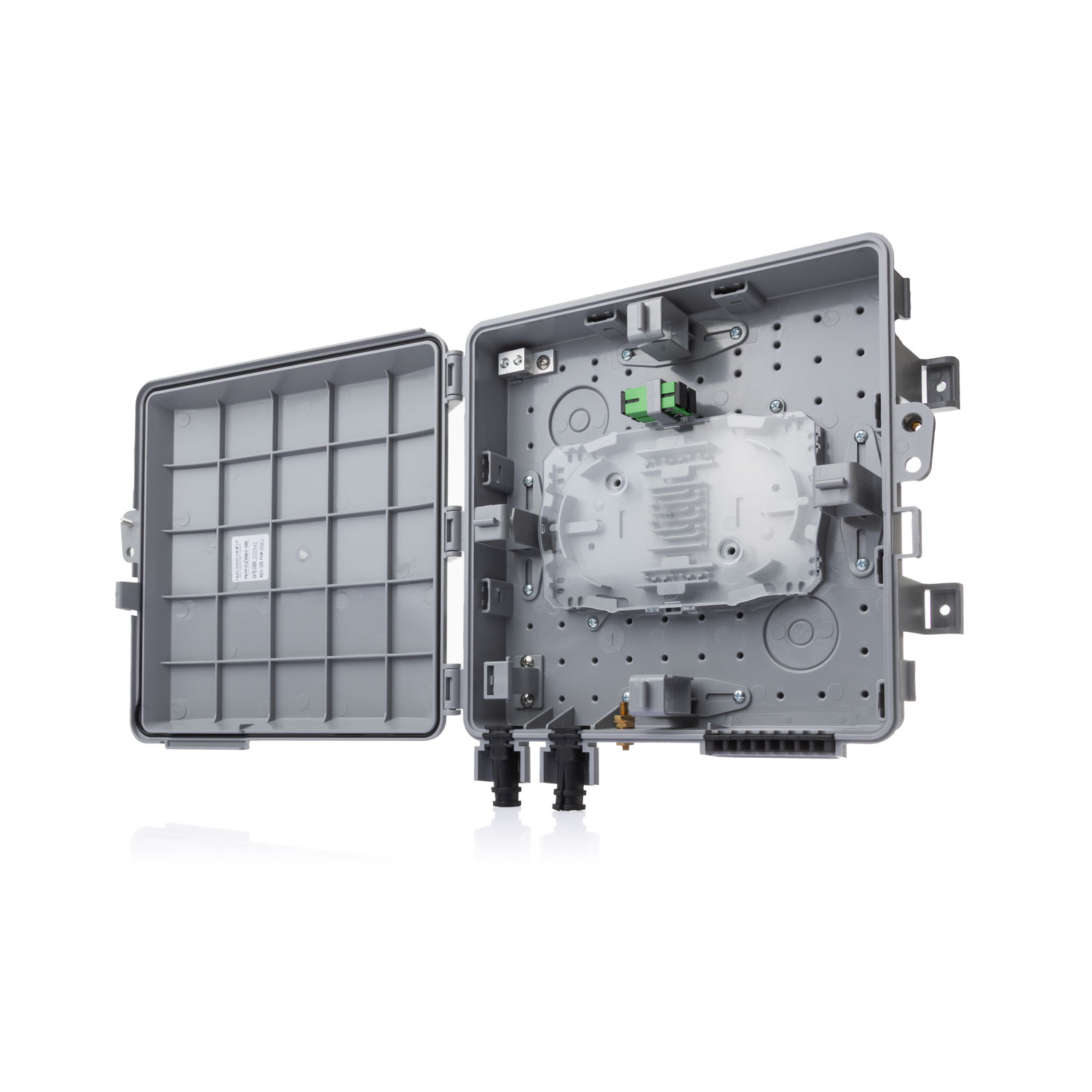

FlexMax NID w/ Fixed Splice Tray

  • Dimensions: 10.2″Hx10.6”Wx3”D

  • Optional Laser Engraved Logo

  • Precision External Location Lug

  • Optional Flex-Lock Multiport Fiber And Microduct Grommets

  • Optional Riser Conduit Grommet

  • Multifunctional Ground And Strength Member Securement Lug

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

  • Holds Up To 4 SC Or 8 LC Bulkhead Adapters
  • Field Selectable Bulkhead Positions
  • Precision Flex Clips Offer 3 Channel Separation Of Strength Member, Buffer Tube And I/O Fiber
  • Store Over 100’ Of 3.0mm I/O Jumper
  • Fixed Splice Tray Holds Up To 12 Splices And Optional PLC Splitter

ONT NID (Optical Network Terminal)

Compliments Calix, Adtran and Zhone ONT Deployments. Can be used to house the electronics module or as a Patch or Splice outdoor NID.

Front ONT NID PG
Precision Group ONT NID Interior closed tray

  • Dimensions 10″Wx12¾”Lx3¾”D

  • Optional Laser Engraved Logo
  • Fiber Splice Tray
  • 2 SCA Bulkhead Adapters
  • Fiber Securement
  • Grounding Hardware
  • Entry/Exit Grommets

Flex MXU NID

Compact footprint and intuitive cable routing ideal for use with splice-ready fiber cable feeding an IDF closet or small MDU.

Flex MXU NID

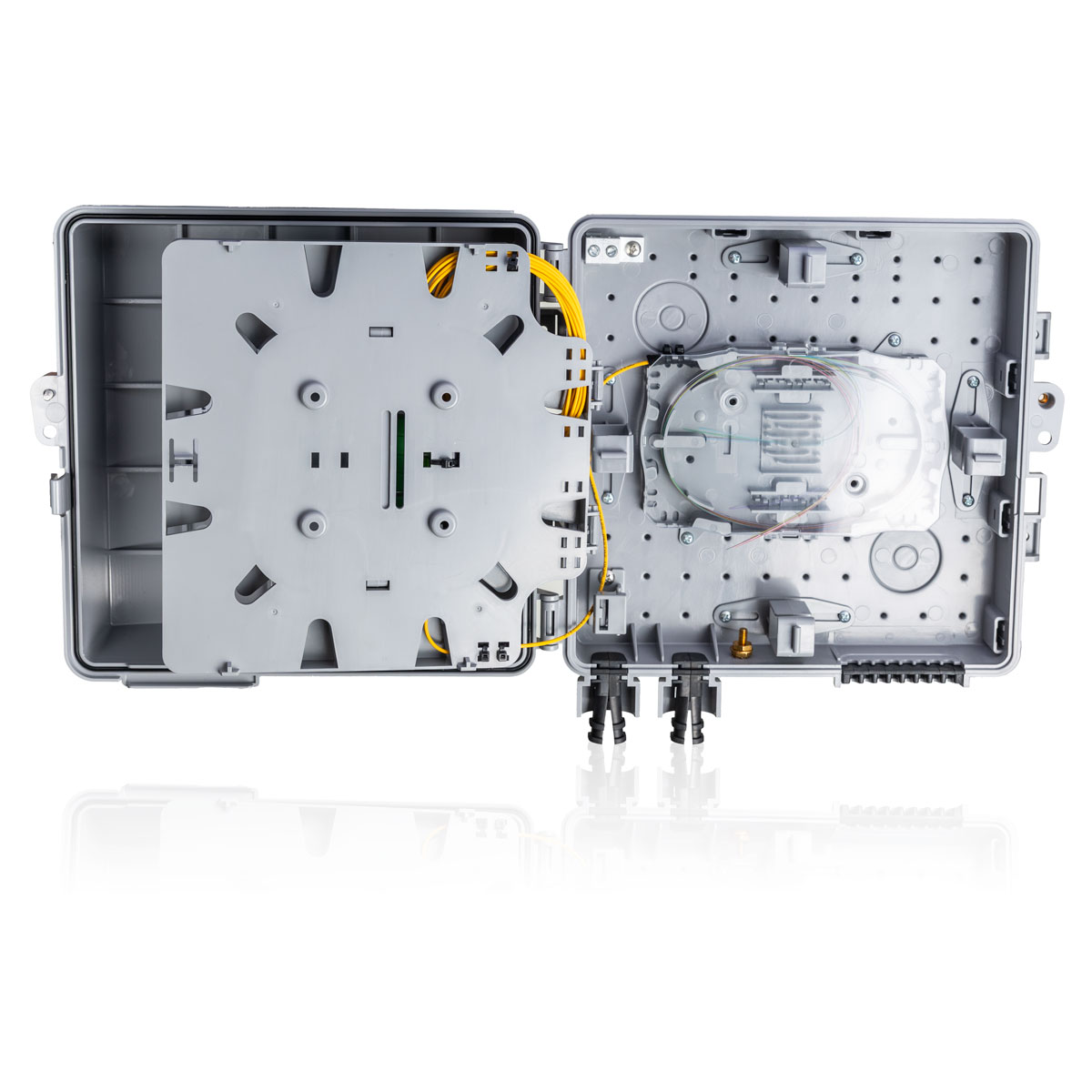

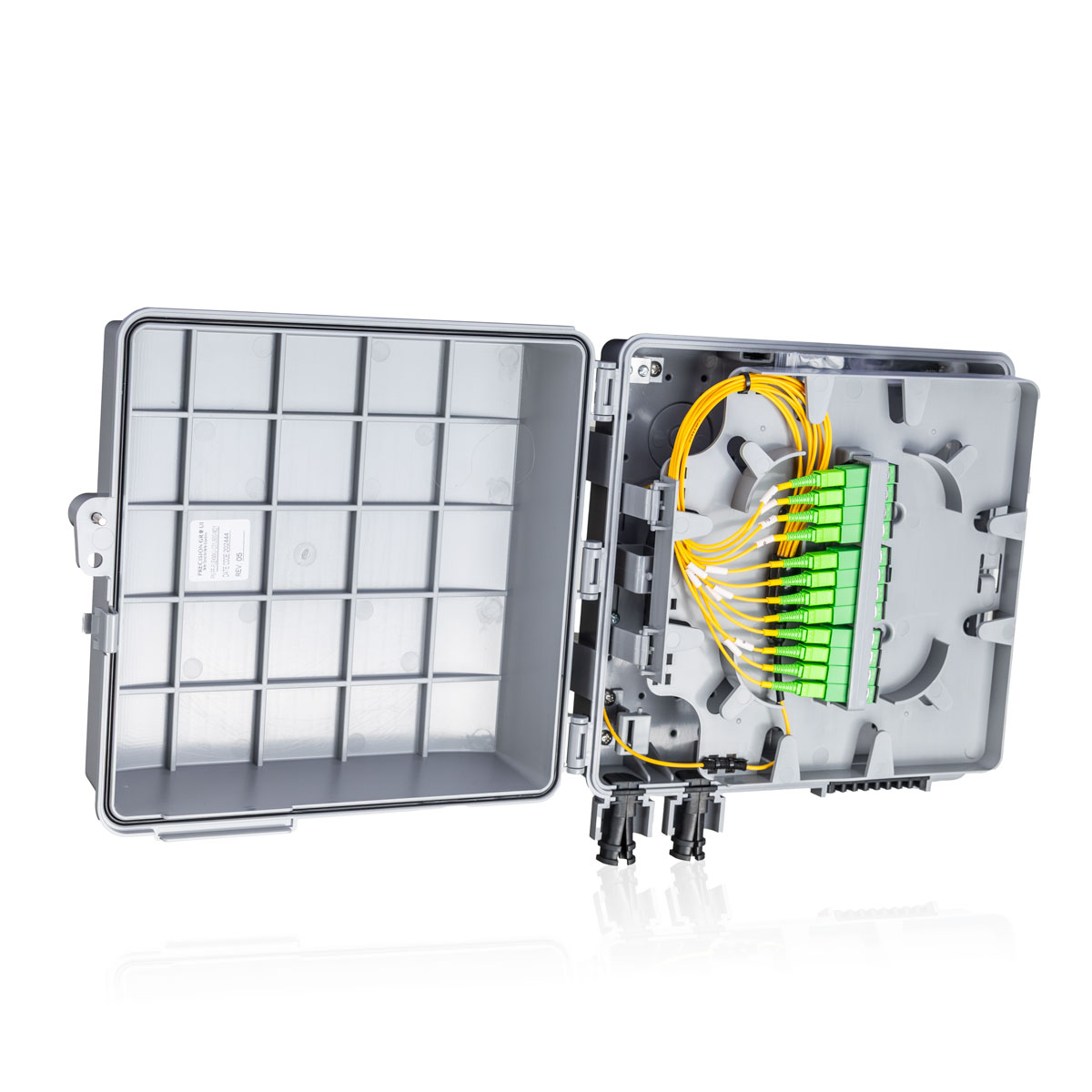

Flex MXU NID Interior

  • Dimensions: 10.3 H x 10.8” W x 4.4” D

  • Optional Laser Engraved Logo

  • Precision External Location Lug

  • Optional Flex-Lock Multiport Fiber And Microduct Grommets

  • Optional Riser Conduit Grommet

  • Multifunctional Ground And Strength Member Securement Lug

  • Flex-Lock Lay-In Cable Entry/Exit Grommets Secure And Seal Flat And Round Drop Cable

  • Holds Up To 12 SC Bulkhead Adapters
  • Precision Flex Clips Offer 3 Channel Separation Of Strength Member, Buffer Tube And I/O Fiber
  • Store Over 100’ Of 3.0mm I/O Jumper
  • Fixed Splice Tray Holds Up To 16 Splices And Optional PLC Splitter
